ASUS PRIME B860 PLUS WIFI , Motherboard

Motherboard Specification

Processor Support :- Intel Core Ultra Processors (Series 2), LGA1851

Chipset :- Intel B860

Memory Support :- 4× DIMM DDR5 up to 256GB, speeds up to 8666+ (OC), Dual Channel, XMP & AEMP III support

Graphics Ports :- 1× DisplayPort 1.4 (4K\@60Hz), 1× HDMI 2.1 (4K\@60Hz), 1× USB Type-C 20Gbps with DP Alt Mode (4K\@120Hz)

Expansion Slots :- 1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode), 3× PCIe 4.0 x16 (x1 mode)

Storage :- 2× M.2 slots (PCIe 5.0 & PCIe 4.0), 4× SATA 6Gb/s ports (RAID 0/1/5/10 supported)

Ethernet :- 1× Realtek 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth :- Wi-Fi 6E (2x2 802.11ax), Bluetooth v5.3

USB :- Rear: 1× USB 20Gbps Type-C, 2× USB 10Gbps Type-A, 1× USB 5Gbps Type-A, 4× USB 2.0 Type-A; Front: 1× USB 5Gbps Type-C, headers for 2× USB 5Gbps and 2× USB 2.0 ports

Audio :- Realtek 7.1 Surround Sound HD Audio CODEC, supports 24-bit/192kHz playback, audio shielding, premium capacitors

Internal I/O Connectors :- CPU fan headers, AIO pump header, 4 chassis fan headers, 24-pin main power, 8-pin CPU power, 2× M.2 slots, SATA ports, USB headers, RGB headers, Clear CMOS, chassis intrusion, COM port, front audio, S/PDIF, TPM, system panel, Thunderbolt USB4 header

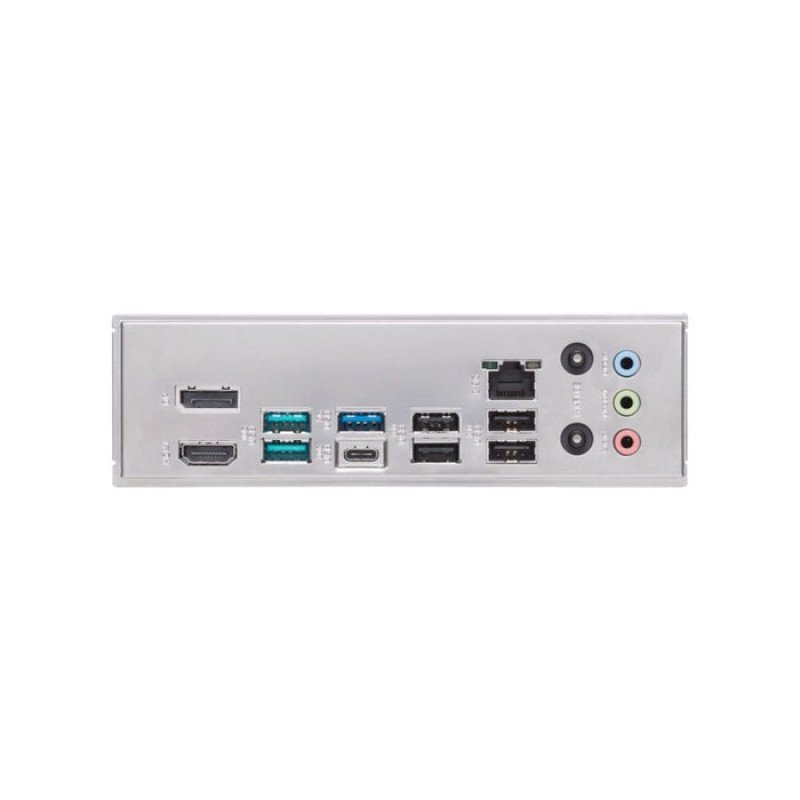

Back Panel I/O Ports :- 1× USB 20Gbps Type-C, 2× USB 10Gbps Type-A, 1× USB 5Gbps Type-A, 4× USB 2.0 Type-A, 1× DisplayPort, 1× HDMI, Wi-Fi module, 1× Realtek 2.5Gb Ethernet, 3× audio jacks

Form Factor :- ATX (30.5 cm x 24.4 cm)
