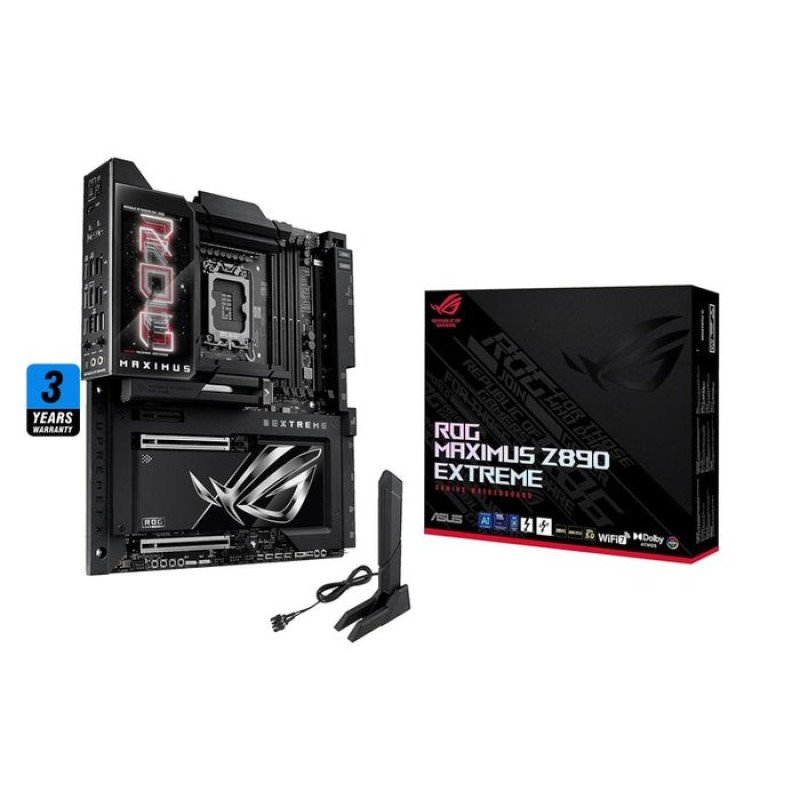

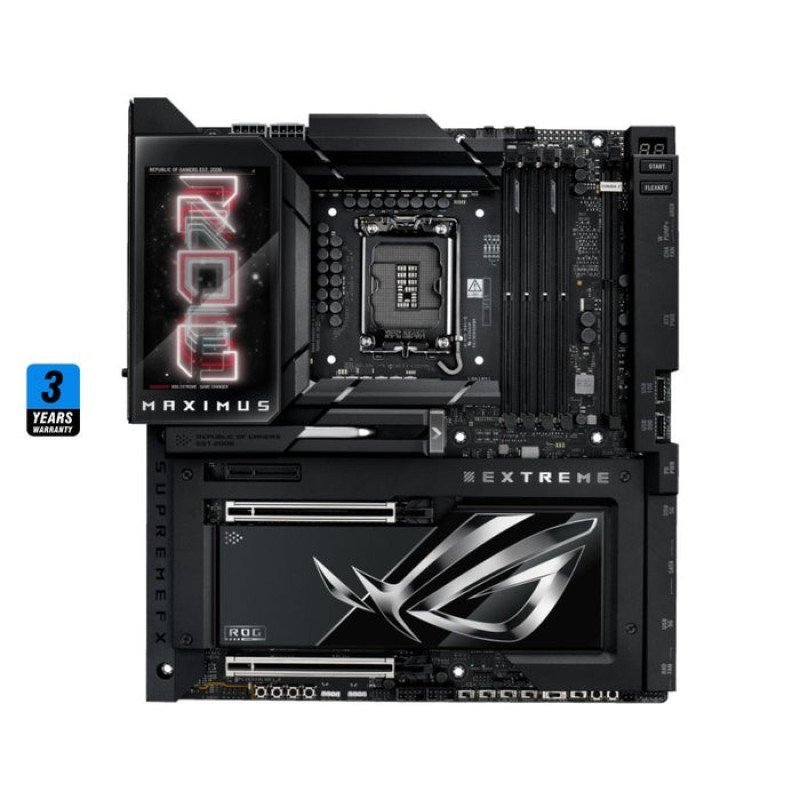

ASUS ROG MAXIMUS Z890 EXTREME , Motherboard

ASUS ROG MAXIMUS Z890 EXTREME Motherboard

CPU Support

Socket: LGA1851

Supported Processors: Intel® Core™ Ultra Series 2

Chipset: Intel® Z890

Memory

Slots: 4 × DDR5 DIMM

Capacity: Up to 256 GB

Speed: Up to 8800+ MHz (OC)

Technologies: DIMM Flex, AEMP III, NitroPath DRAM

Expansion & Storage

PCIe Slots: 2 × PCIe 5.0 ×16

M.2 Slots: 6 onboard (Gen5 + Gen4)

Additional: ROG Q‑DIMM.2 module adds 2 more M.2 slots

SATA Ports: 4 × SATA 6 Gb/s

Networking

LAN: 10 Gb + 2.5 Gb Ethernet

Wi‑Fi: Wi‑Fi 7 (802.11be)

Bluetooth: Integrated

Power & VRM

VRM Design: Extreme power solution, optimized for overclocking

Cooling Features: AI Cooling II, advanced heatsinks

Form Factor

Type: E‑ATX

Design: Premium ROG styling with integrated 5″ LCD display for system stats or custom graphics

Back Panel I/O

USB Ports: Multiple USB 3.2 Gen 2×2, Gen 2, Gen 1

Thunderbolt: Dual Thunderbolt 4 ports

Display Outputs: HDMI, DisplayPort

Audio: High‑definition audio jacks

Package Contents

ASUS ROG MAXIMUS Z890 EXTREME Motherboard × 1

Wi‑Fi Antenna × 1

ROG Q‑DIMM.2 Module × 1

Accessory Kit (cables, screws, brackets) × 1

User Manual × 1
