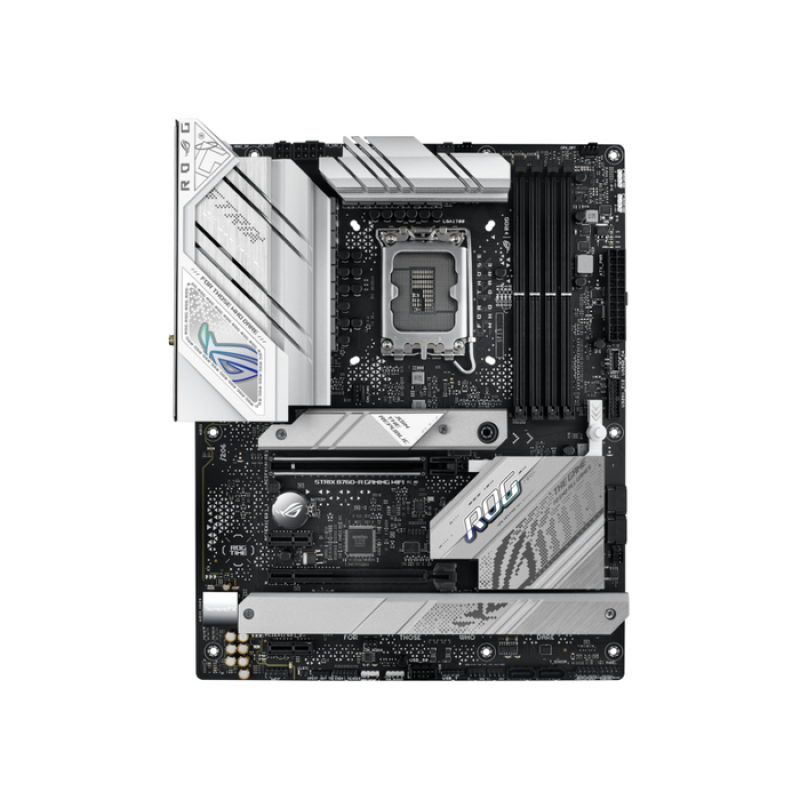

ASUS ROG STRIX B760-A GAMING WIFI

• Motherboard Specification

 • Model: ASUS ROG STRIX B760-A GAMING WIFI

 • Chipset: Intel B760

 • CPU Support:

  – Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron (Socket LGA 1700)

 • Form Factor: ATX

 • Memory Support:

  – 4 × DDR5 DIMM slots

  – Up to 192GB total capacity

  – Up to 7800+ MT/s (OC)

  – Dual-channel architecture

  – Supports Intel XMP and AEMP II profiles

 • Expansion Slots:

  – 1 × PCIe 5.0 x16 (CPU)

  – 1 × PCIe 3.0 x16 (x4 mode)

  – 2 × PCIe 3.0 x1

 • Storage:

  – 3 × M.2 PCIe 4.0 x4 (NVMe only)

  – 4 × SATA 6Gb/s ports

 • Graphics Output:

  – 1 × HDMI 2.1

  – 1 × DisplayPort 1.4

 • Audio:

  – ROG SupremeFX 7.1 Surround Sound

  – ALC4080 codec + Savitech amplifier

 • Networking:

  – Intel Wi-Fi 6E (802.11ax)

  – Bluetooth 5.3

  – Intel 2.5Gb Ethernet with LANGuard

 • USB Ports:

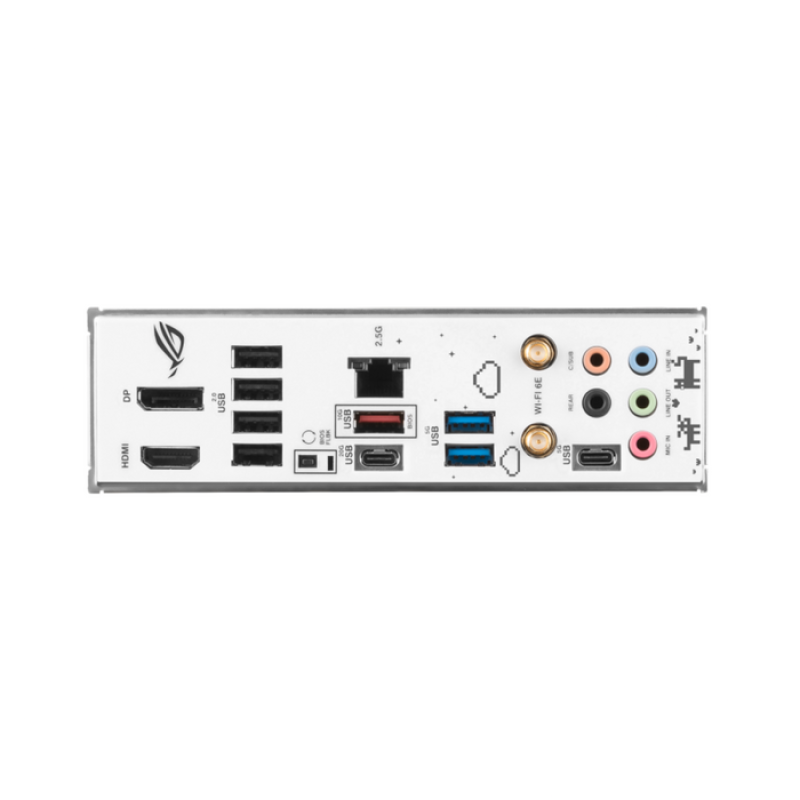

  – Rear I/O:

   • 1 × USB 3.2 Gen 2x2 Type-C

   • 3 × USB 3.2 Gen 2 Type-A

   • 4 × USB 2.0

  – Internal Headers:

   • 1 × USB 3.2 Gen 2 Type-C

   • 2 × USB 3.2 Gen 1

   • 2 × USB 2.0

 • Internal Connectors:

  – 1 × 24-pin ATX

  – 1 × 8-pin + 1 × 4-pin CPU power

  – 6 × fan headers

  – 2 × ARGB headers

  – 2 × RGB headers

  – TPM, Thunderbolt header, front panel audio

 • DIY Features:

  – PCIe Q-Release

  – M.2 Q-Latch

  – BIOS FlashBack™

  – Q-LED diagnostic indicators

 • BIOS:

  – UEFI AMI BIOS with MemTest86

  – 256Mb Flash ROM

 • Software:

  – Armoury Crate, AI Networking, Two-Way AI Noise Cancelation

 • Dimensions: 305 × 244 mm

 • Color: White and silver cyber-themed design
