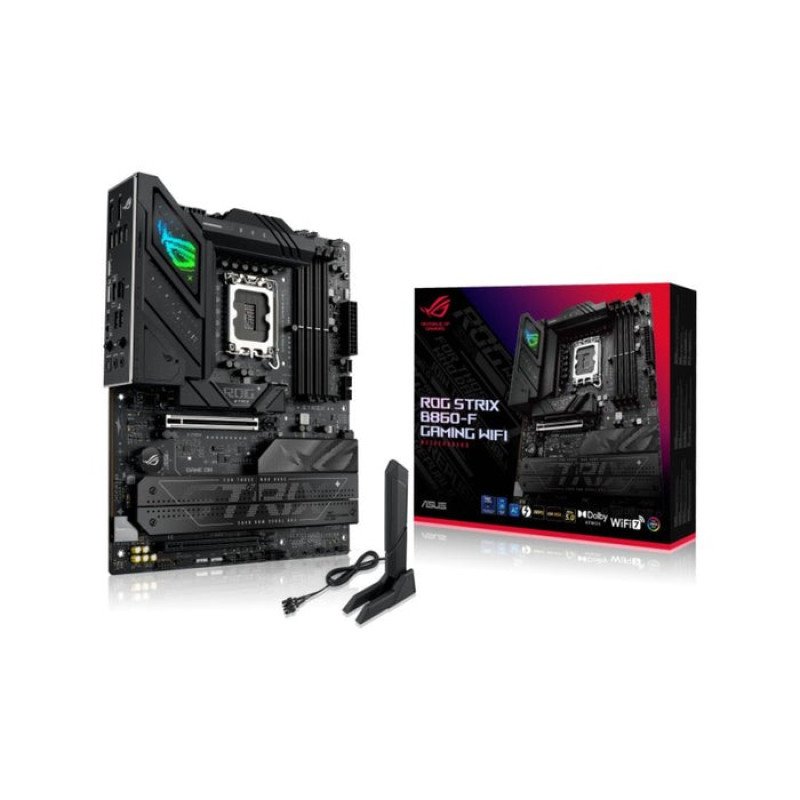

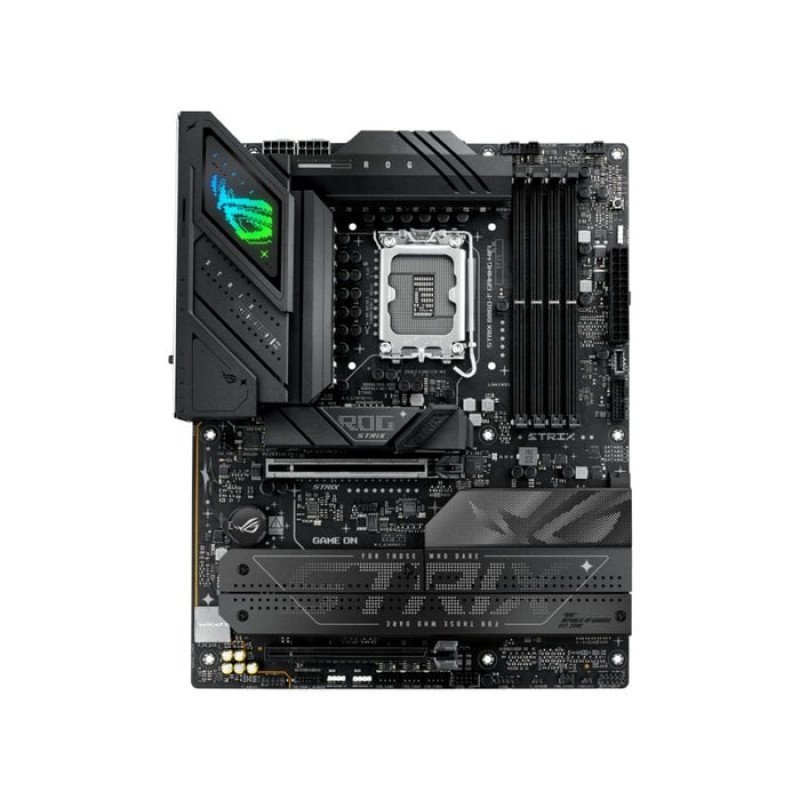

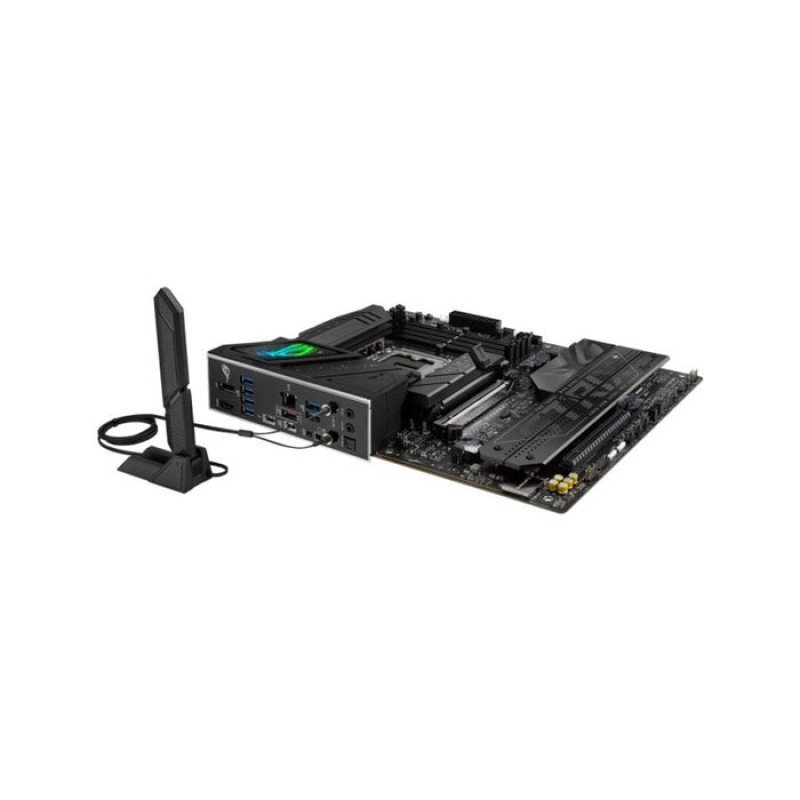

ASUS ROG STRIX B860-F GAMING WIFI , Motherboard

Motherboard Specification

• Model: ASUS ROG STRIX B860-F GAMING WIFI

• Socket: Intel LGA 1851 – supports Intel Core™ Ultra (Arrow Lake-S) processors

• Chipset: Intel B860

• Form Factor: ATX

• Memory Support:

– 4 × DDR5 DIMM slots (up to 256GB)

– Speeds: up to 9066+ MT/s (OC)

– Dual-channel architecture

– Supports Intel XMP & ASUS AEMP III profiles

• Expansion Slots:

– 1 × PCIe 5.0 x16 (CPU)

– 1 × PCIe 4.0 x16 (x4 mode, chipset)

• Storage Interface:

– 4 × M.2 slots:

• 1 × PCIe 5.0 x4 (2280)

• 1 × PCIe 4.0 x4 (22110)

• 2 × PCIe 4.0 x4 (2280)

– 4 × SATA 6Gb/s ports

• Networking:

– Intel 2.5Gb Ethernet

– Wi-Fi 7 (802.11be)

– Bluetooth 5.4

• USB Ports:

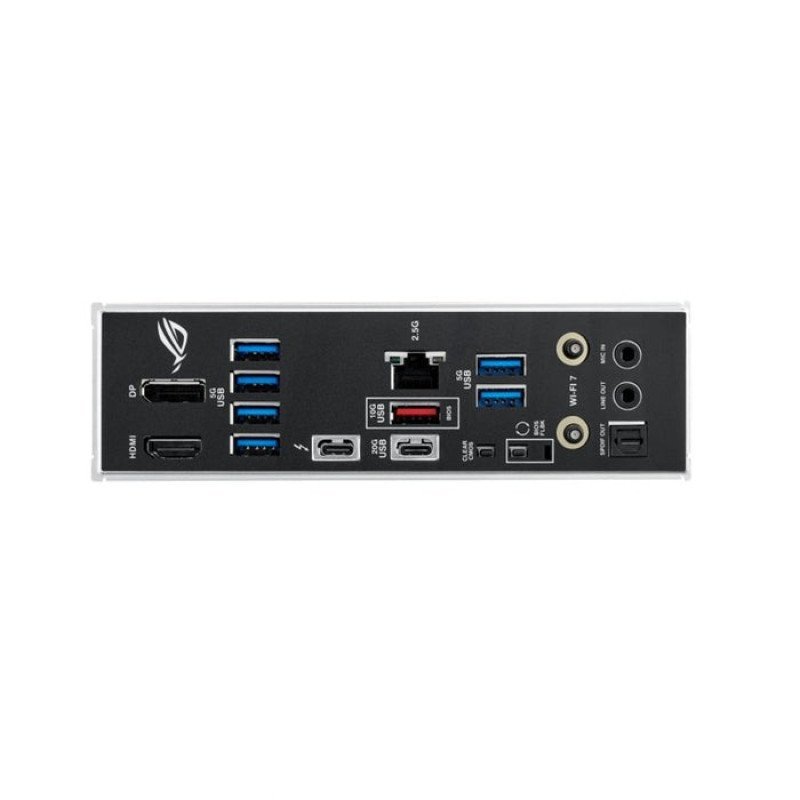

– Rear I/O:

• 1 × USB4 Type-C (40Gb/s)

• 1 × USB 3.2 Gen 2x2 Type-C (20Gb/s)

• 1 × USB 3.2 Gen 2 Type-A (10Gb/s)

• 6 × USB 3.2 Gen 1 Type-A (5Gb/s)

– Front I/O:

• 1 × USB 3.2 Gen 2 Type-C

• 2 × USB 3.2 Gen 1 Type-A

• 3 × USB 2.0

• Display Outputs:

– 1 × HDMI 2.1

– 1 × DisplayPort 2.1

• Audio:

– ROG SupremeFX 7.1-channel HD audio

– Savitech SV3H712 AMP

• Power Design:

– 16+1+2+1 power stages (80A)

– ProCool power connectors

• Cooling Features:

– Enlarged VRM heatsinks

– M.2 heatsinks

– Hybrid fan headers

– AI Cooling II

• RGB & Customization:

– Aura Sync RGB lighting

– Gen 2 addressable RGB headers

• Software Features:

– ASUS AI Advisor

– Armoury Crate

– AI Networking II
