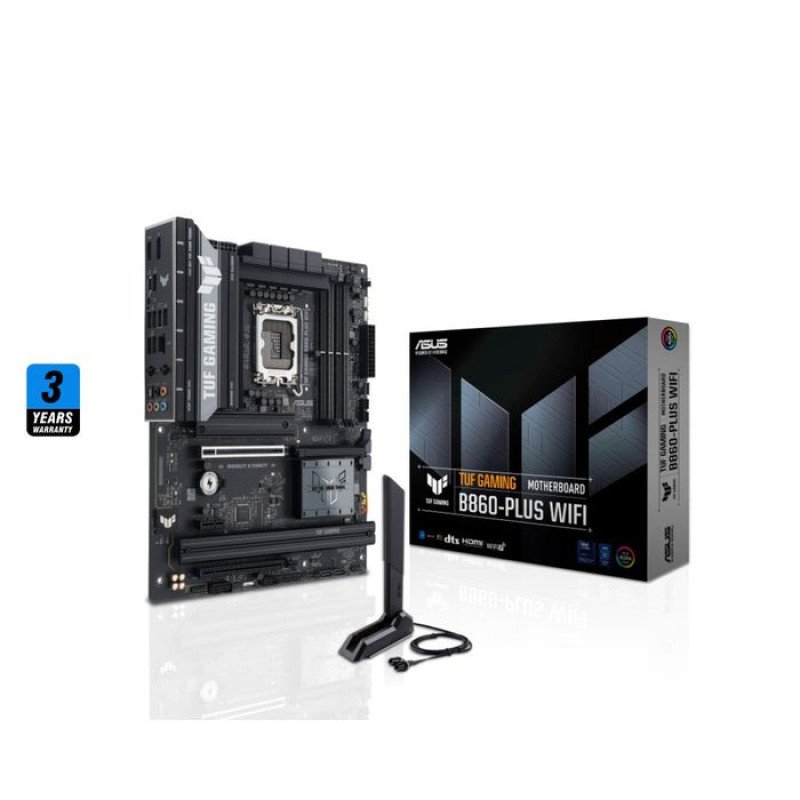

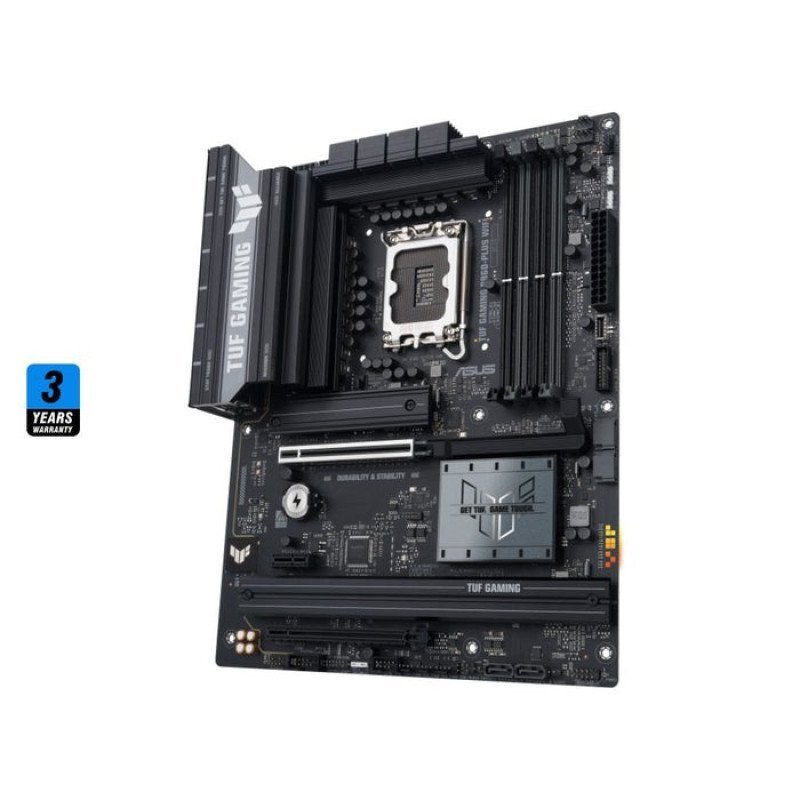

ASUS TUF GAMING B860-PLUS WIFI , Motherboard

TUF GAMING B860-PLUS WIFI - Motherboard Specification

Socket: Intel LGA 1851

Chipset: Intel B860

Form Factor: ATX

RAM: 4× DDR5, up to 256GB, 8666+ MT/s (OC), Dual Channel

Storage:

3× M.2 (1× PCIe 5.0, 2× PCIe 4.0)

4× SATA 6Gb/s

Expansion Slots:

1× PCIe 5.0 x16

1× PCIe 4.0 x16 (x4 mode)

1× PCIe 4.0 x1

Graphics Ports: HDMI 2.1, DisplayPort 1.4, USB-C (DP Alt)

LAN: Realtek 2.5Gb Ethernet

Wi-Fi & BT: Wi-Fi 7 (2x2), Bluetooth 5.4

USB Ports:

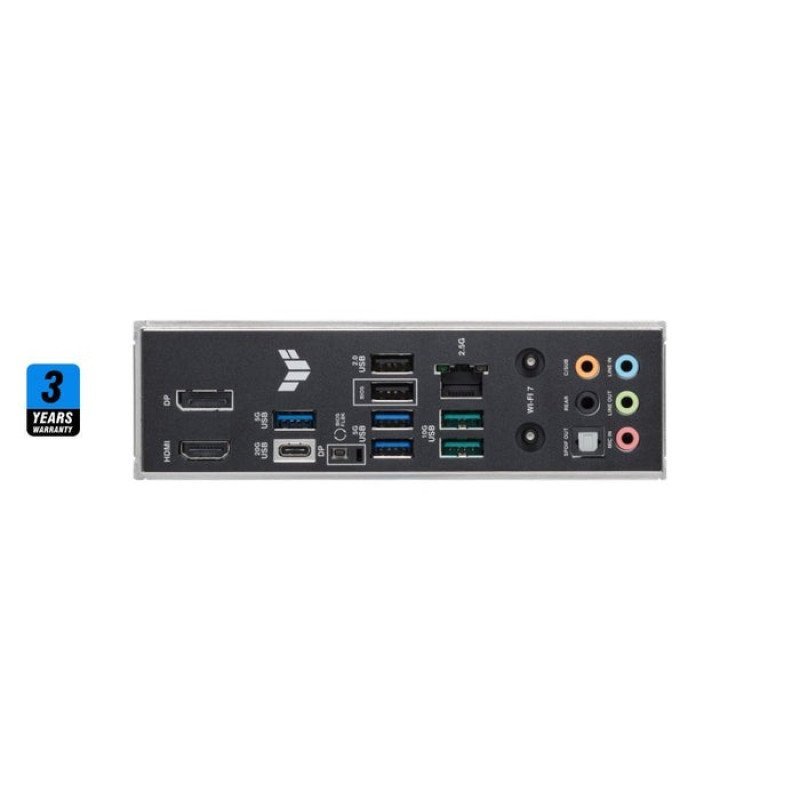

Rear: 1× USB-C 20Gbps, 2× USB-A 10Gbps, 3× USB-A 5Gbps, 2× USB 2.0

Front: 1× USB-C 10Gbps, 2× USB 5Gbps, 2× USB 2.0

Audio: Realtek 7.1 HD, S/PDIF Out

Power: 24-pin ATX, 2× 8-pin CPU

Cooling: 6× Fan headers (CPU, AIO, Chassis)

RGB: Aura Sync, 3× ARGB Gen 2

Features: Q-Latch, Q-LED, M.2 heatsinks, BIOS FlashBack

Accessories: Wi-Fi antenna, SATA cables, M.2 kit, sticker

OS Support: Windows 11 (22H2+)
