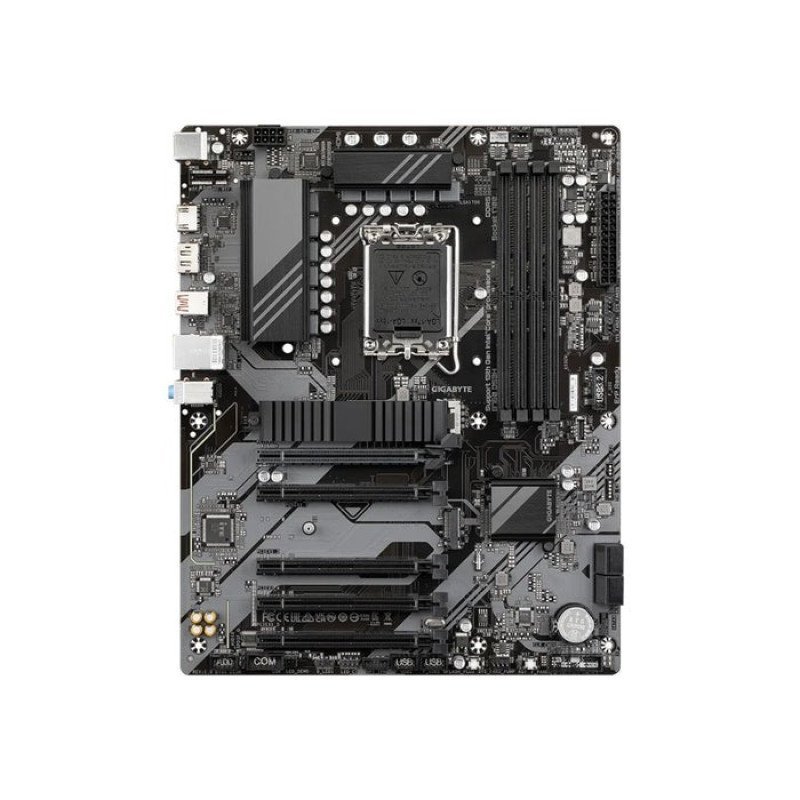

Gigabyte B760 DS3H D5, Motherboard

Motherboard Specification

Processor Support: LGA1700 socket, supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors

Chipset: Intel® B760 Express Chipset

Memory Support:

14th & 13th Gen Intel® Core™ i9/i7: Up to DDR5 7600(O.C.) MT/s

13th Gen i5/i3 & 12th Gen Intel® Core™: Up to DDR5 4800 MT/s

4 x DDR5 DIMM slots, up to 256GB, dual-channel, XMP support

Graphics Ports:

1 x D-Sub (1920x1200@60Hz)

1 x HDMI (4096x2160@60Hz, HDMI 2.1)

2 x DisplayPort (4096x2304@60Hz, DP 1.2)

Supports up to quad-display

Expansion Slots:

1 x PCIe 4.0 x16 (CPU)

2 x PCIe 3.0 x1 (Chipset)

Storage:

2 x M.2 PCIe 4.0 x4 slots (2280)

4 x SATA 6Gb/s, RAID 0/1/5/10

Ethernet: Realtek® 2.5GbE LAN

USB:

Back Panel: 1 x USB Type-C® (USB 3.2 Gen 2), 3 x USB 3.2 Gen 1, 2 x USB 2.0

Internal: 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)

Audio: Realtek® Audio CODEC, 7.1-channel, S/PDIF Out support

Internal I/O Connectors:

1 x 24-pin ATX power, 1 x 8-pin ATX 12V

3 x system fan headers, 1 x CPU fan header

1 x addressable LED header, 1 x RGB LED header

1 x front panel header, 1 x front panel audio header

1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

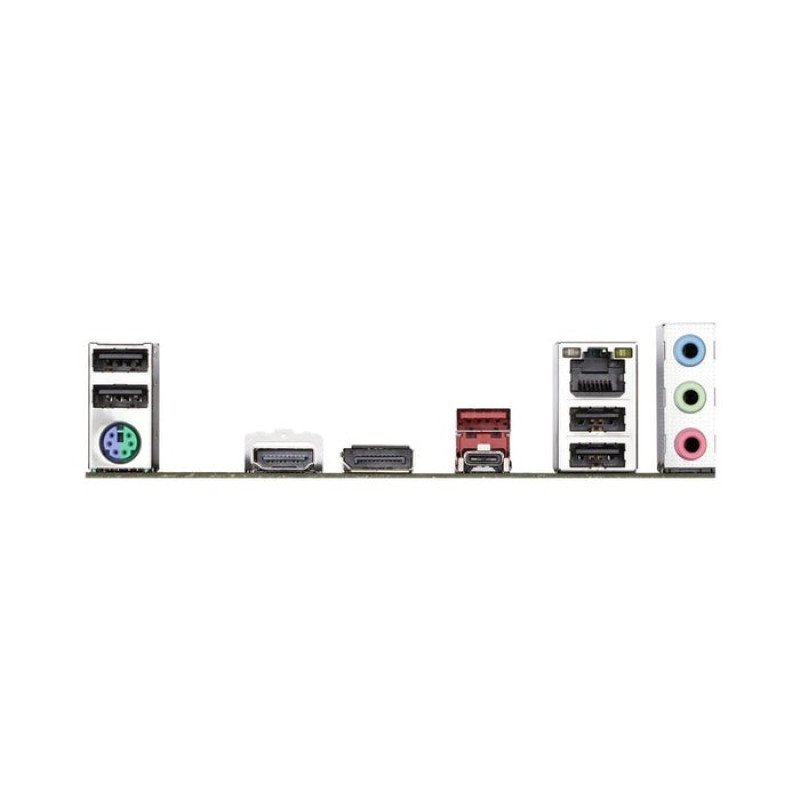

Back Panel I/O Ports:

2 x USB 2.0, 1 x PS/2 keyboard/mouse

1 x D-Sub, 1 x HDMI, 2 x DisplayPorts

3 x USB 3.2 Gen 1, 1 x USB Type-C® (USB 3.2 Gen 2)

1 x RJ-45, 3 x audio jacks

Form Factor: ATX
