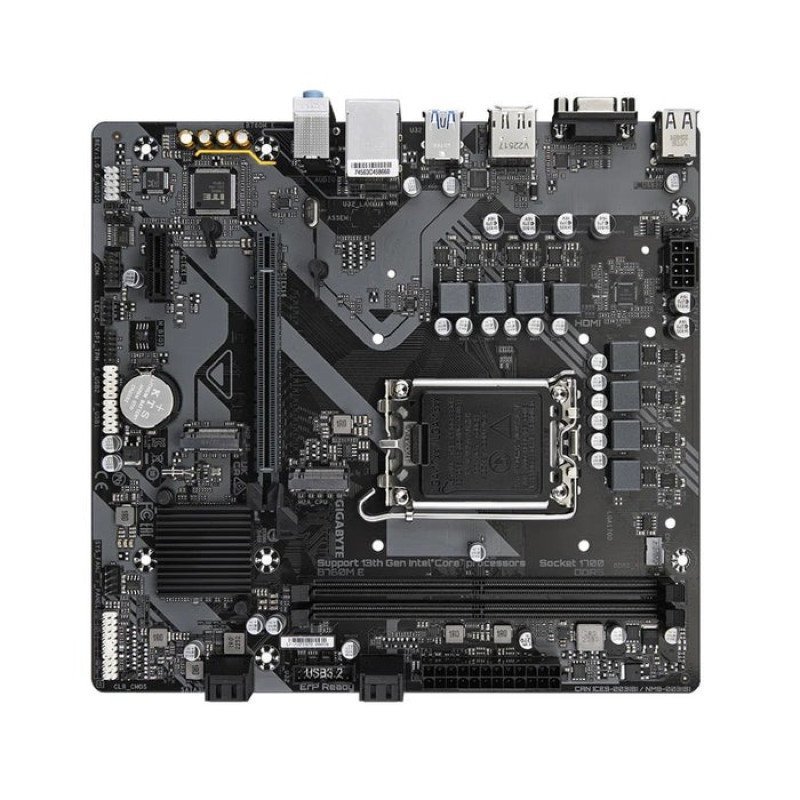

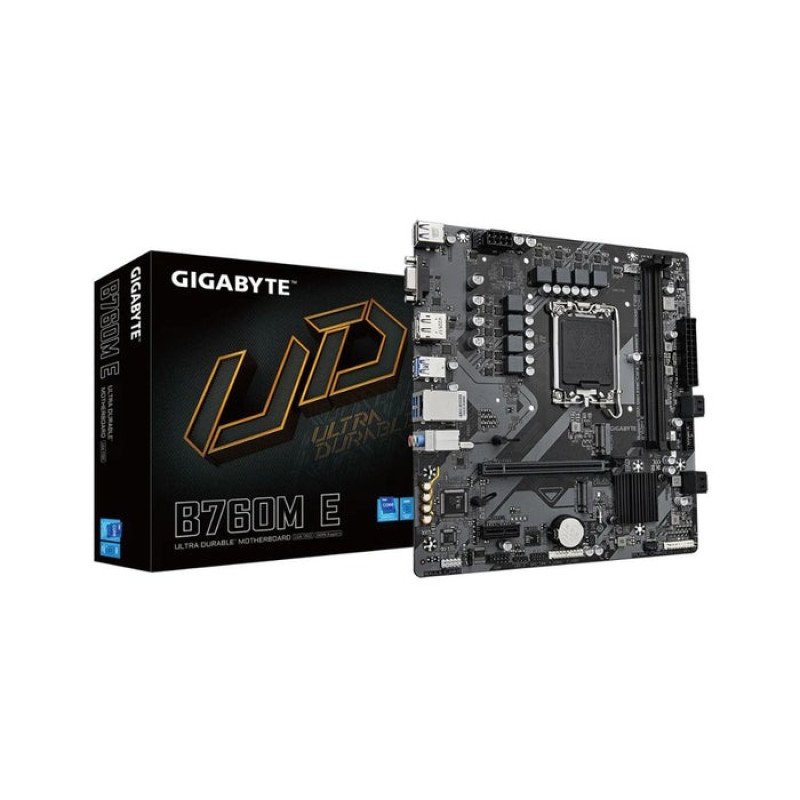

Gigabyte B760M-E D5, Motherboard

Motherboard Specification – Gigabyte B760M-E D5

• Chipset: Intel B760

• Form Factor: Micro-ATX

• CPU Socket: LGA 1700

• Memory Support: Dual Channel DDR5, 2 x DIMM slots

• Max Memory Capacity: Up to 96GB

• Memory Speed: Up to 4800MHz (native), up to 7200MHz (OC)

• Expansion Slots:

– 1 x PCIe 4.0 x16

– 1 x PCIe 3.0 x1

• Storage Interface:

– 2 x PCIe 4.0 x4 M.2

– 4 x SATA III 6Gb/s

• Graphics Outputs: HDMI 2.1, DisplayPort, D-Sub

• Audio: 8-Channel HD Audio with Audio Noise Guard

• LAN: 1 x Gigabit Ethernet (Realtek GbE LAN)

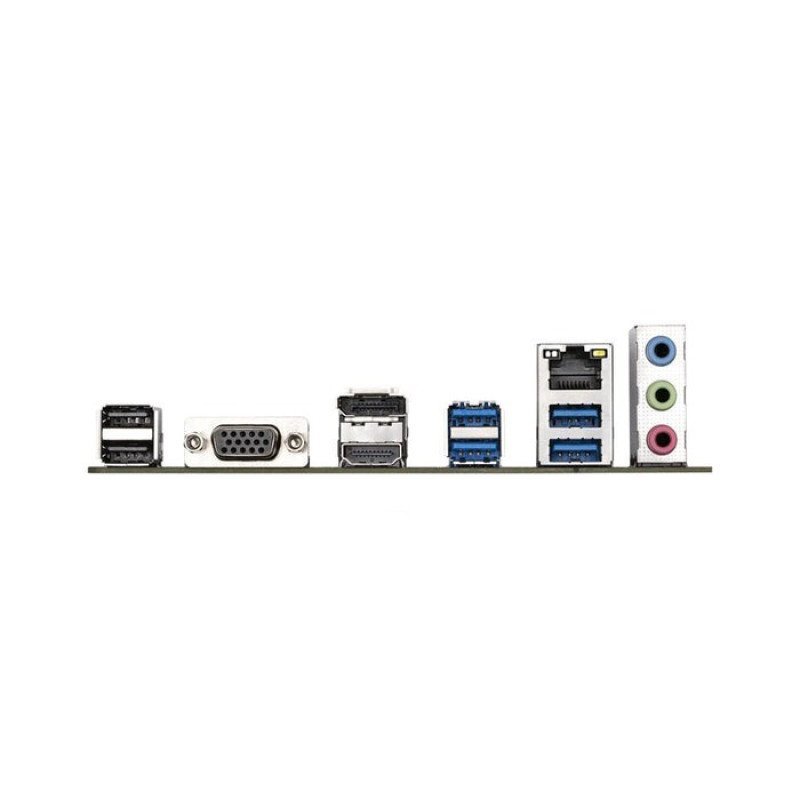

• USB Ports:

– Rear: USB 3.2 Gen 1, USB 2.0

– Internal Headers: USB 3.2 Gen 1, USB 2.0

• Cooling Features: Smart Fan 6, Hybrid Fan Headers, FAN STOP

• RGB Support: 1 x RGB LED Header

• BIOS: UEFI BIOS with Q-Flash

• EZ-Latch: PCIe slot quick-release design

• Compatibility: Supports Intel 12th, 13th, and 14th Gen Core processors
