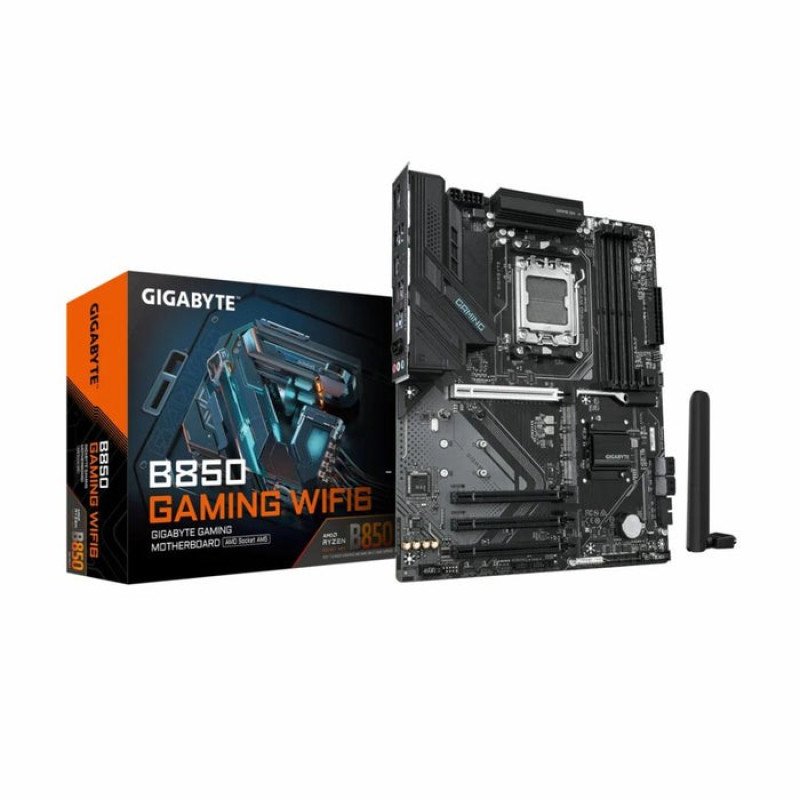

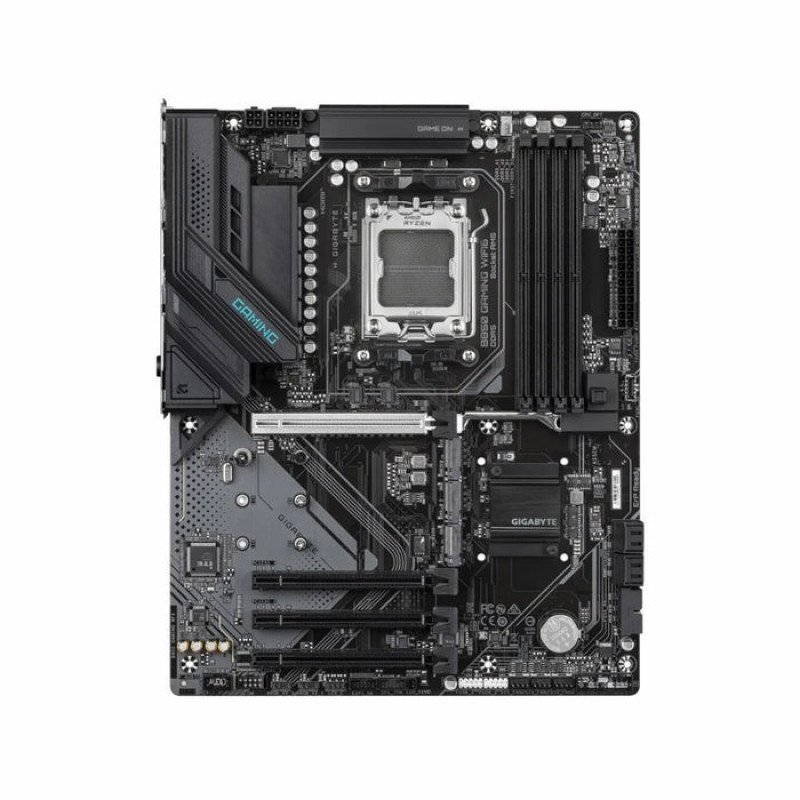

Gigabyte B850 GAMING WIFI6, Motherboard

Motherboard Specification

• Processor Support : AMD Socket AM5, supports Ryzen™ 9000 / 8000 / 7000 Series Processors

• Chipset : AMD B850

• Memory Support : 4 x DDR5 DIMM, up to 256GB, DDR5 8200(O.C.) ~ 4400 MT/s, dual channel, AMD EXPO™ & XMP support

• Graphics Ports : 1 x DisplayPort (3840x2160@144Hz), 1 x HDMI (4096x2160@60Hz)

• Expansion Slots : 1 x PCIe x16 (CPU), PCIe 5.0/4.0/4.0 depending on CPU, 3 x PCIe x1 (Chipset, PCIe 3.0)

• Storage : 3 x M.2 slots (PCIe 5.0/4.0 depending on CPU), 4 x SATA 6Gb/s, RAID 0/1/5/10 support

• Ethernet : Realtek® GbE LAN (1 Gbps)

• Wireless & Bluetooth : Realtek® Wi-Fi 6 RTL8851BE, Bluetooth® 5.3

• USB : Rear: 1 x USB-C 3.2 Gen1, 2 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0 — Front: 1 x USB-C 3.2 Gen1, 1 x USB 3.2 Gen1 header (2 ports), 2 x USB 2.0 headers (4 ports)

• Audio : Realtek® 7.1 Channel Audio CODEC, supports S/PDIF Out, HD Audio

• Internal I/O Connectors : 1 x 24-pin ATX, 1 x 8-pin + 1 x 4-pin ATX 12V, 4 x fan headers, 3 x ARGB Gen2 headers, 1 x RGB header, 3 x M.2, 4 x SATA, 1 x USB-C Gen1, 1 x USB 3.2 Gen1 header, 2 x USB 2.0 headers, TPM, Reset, Clear CMOS

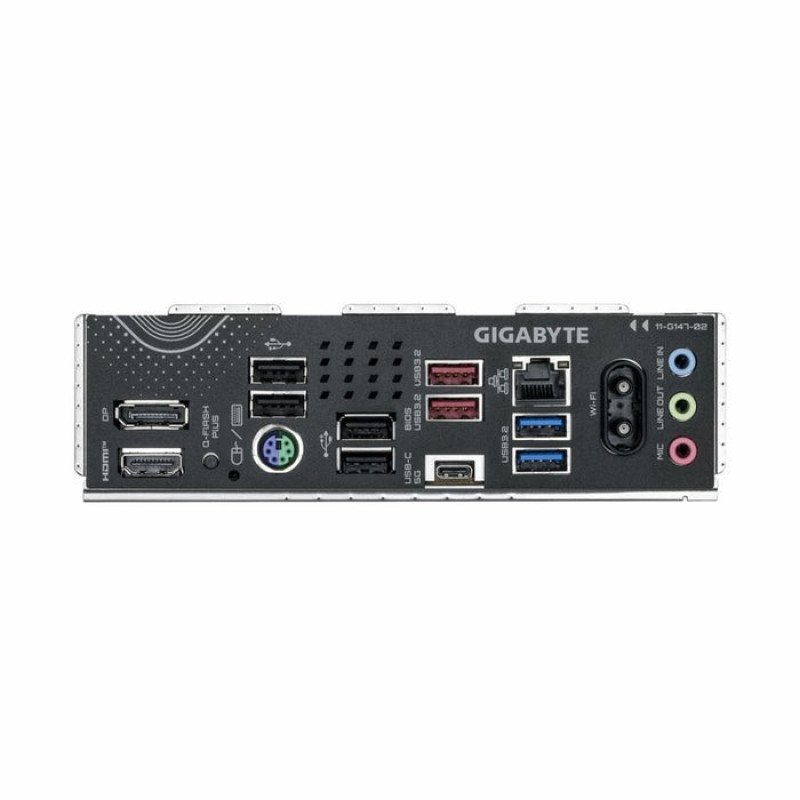

• Back Panel I/O Ports : 1 x DisplayPort, 1 x HDMI, 1 x USB-C 3.2 Gen1, 2 x USB 3.2 Gen2 Type-A (red), 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x PS/2, 1 x RJ-45, 3 x Audio jacks, 2 x Antenna connectors, 1 x Q-Flash Plus button

• Form Factor : ATX, 30.5 cm x 24.4 cm
