Gigabyte Radeon™ RX 9060 XT GAMING OC 16GB

Graphics Card Specification

• Model: Gigabyte Radeon™ RX 9060 XT GAMING OC 16G

• GPU Name: Navi 44 XT

• Architecture: AMD RDNA 4.0

• Process Technology: TSMC 4 nm (N4P FinFET)

• Transistor Count: ~29.7 billion

• Die Size: 199 mm²

• Stream Processors: 2048

• TMUs: 128

• ROPs: 64

• Compute Units: 32

• Ray Accelerators: 32

• AI Accelerators: 64

• Base Clock: 1700 MHz

• Game Clock: 2530 MHz (2780 MHz OC)

• Boost Clock: 3130 MHz (3320 MHz OC)

• Memory Size: 16 GB GDDR6

• Memory Bus: 128‑bit

• Effective Memory Speed: 20.1 Gbps

• Memory Bandwidth: ~402 GB/s

• Bus Interface: PCI Express 5.0 ×16

• DirectX Support: 12 Ultimate

• OpenGL Support: 4.6

• Max Resolution: 7680 × 4320 (8K)

• Outputs:

– 2 × HDMI 2.1

– 2 × DisplayPort 2.1

• Multi‑View: Up to 4 displays

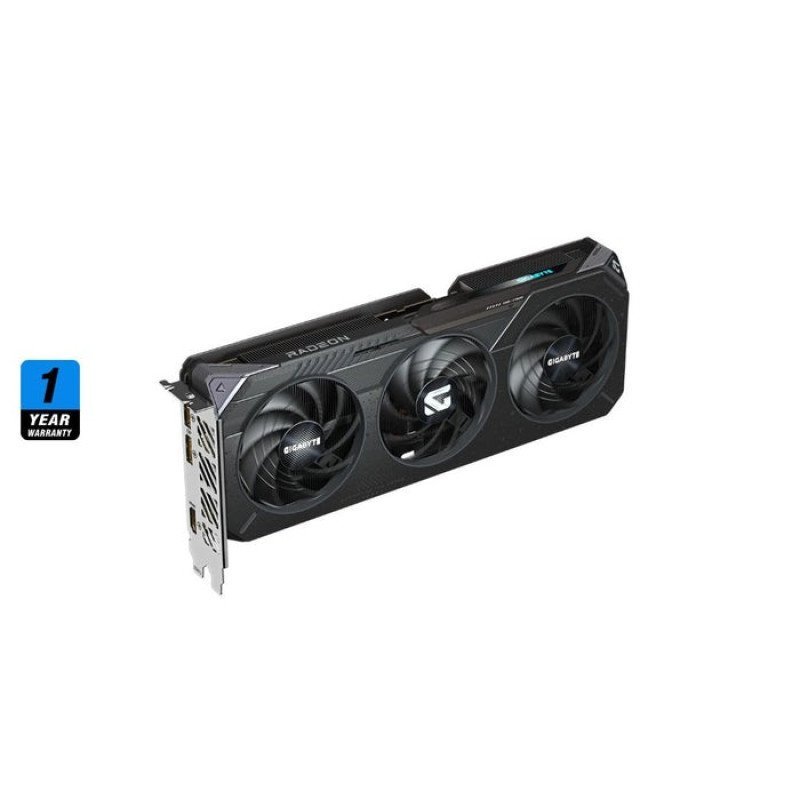

• Cooling System: WINDFORCE triple‑fan cooling with alternate spinning and screen cooling

• Features:

– Ray Tracing support

– AMD FidelityFX Super Resolution (FSR)

– RGB Fusion lighting

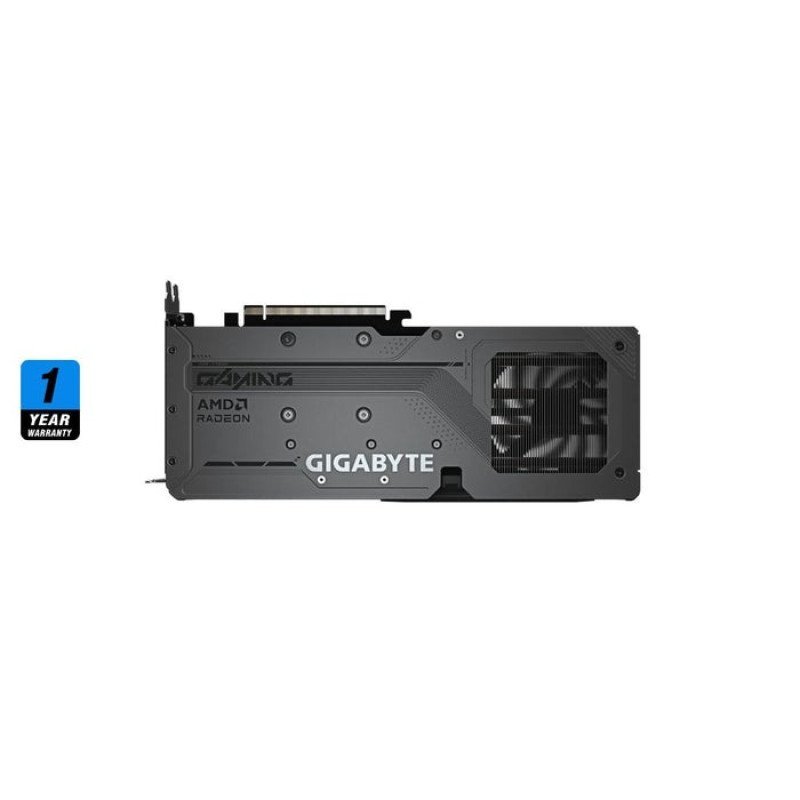

– Metal backplate for durability

• Recommended PSU: 650 W

• Power Connectors: 1 × 8‑pin

• Card Dimensions (L×W×H): ~282 × 115 × 50 mm

• Release Date: June 4, 2025
