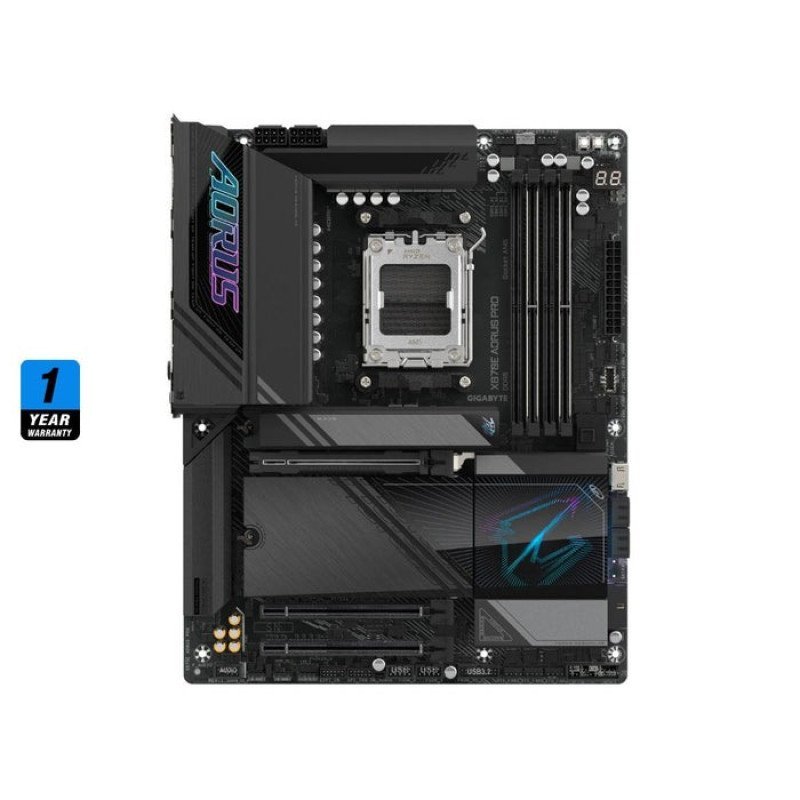

Gigabyte X870E AORUS PRO, Motherboard

Motherboard Specification – Gigabyte X870E AORUS PRO

Chipset: AMD X870E

Socket: AM5 – Supports AMD Ryzen 7000 / 8000 / 9000 Series

Form Factor: ATX

Memory

• 4 x DDR5 DIMM slots (Dual Channel)

• Up to 256GB system memory

• Supported speeds: DDR5 8200(OC), 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6666(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800, 4400 MT/s

• AMD EXPO and Intel XMP support

Graphics

• Integrated AMD Radeon Graphics

• 2 x USB4 Type-C with DisplayPort Alt Mode (3840x2160 @240Hz)

• 1 x HDMI 2.1 (4096x2160 @60Hz)

• 1 x HDMI 1.4 front header (1920x1080 @30Hz)

Audio

• Realtek ALC1220 HD Audio Codec

• Supports 2/4/5.1/7.1-channel output

• Optical S/PDIF Out

Networking

• Realtek 2.5GbE LAN

• Qualcomm Wi-Fi 7 (802.11a/b/g/n/ac/ax/be)

• Bluetooth 5.4

Expansion Slots

• 1 x PCIe 5.0 x16 (reinforced UD Slot X)

• 1 x PCIe 4.0 x4

• 1 x PCIe 3.0 x4

Storage Interface

• 3 x M.2 PCIe 5.0 x4

• 1 x M.2 PCIe 4.0 x4

• 4 x SATA III 6Gb/s

• RAID 0, 1, 5, 10 support

USB Ports

• 2 x USB4 Type-C (rear)

• 3 x USB 3.2 Gen 2 Type-A (red, rear)

• 1 x USB 3.2 Gen 2x2 Type-C

• 8 x USB 3.2 Gen 1 (4 rear, 4 internal)

• 6 x USB 2.0/1.1 (2 rear, 4 internal)

Internal I/O Connectors

• 1 x 24-pin ATX main power

• 2 x 8-pin ATX 12V power

• 1 x CPU fan, 1 x CPU/water pump, 4 x system fan, 2 x system fan/water pump

• 3 x RGB Gen2 headers, 1 x RGB LED header

• 4 x SATA, 4 x M.2

• 1 x front panel, 1 x front audio

• 1 x USB Type-C (Gen 2x2), 2 x USB 3.2 Gen 1, 2 x USB 2.0

• 1 x noise detection, 1 x HDMI

• 1 x TPM header, 1 x power button, 1 x reset button

• 2 x temperature sensor headers, 1 x reset jumper, 1 x Clear CMOS jumper

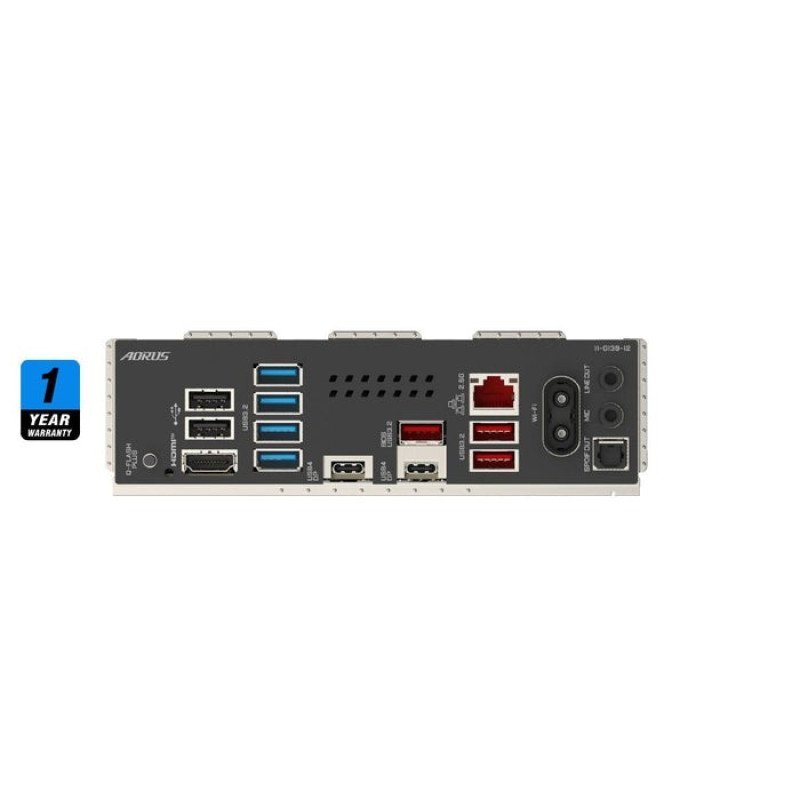

Back Panel I/O Ports

• 2 x USB 2.0

• 4 x USB 3.2 Gen 1

• 2 x USB4 Type-C

• 3 x USB 3.2 Gen 2 Type-A (red)

• 1 x HDMI

• 1 x RJ-45 LAN

• 2 x antenna connectors

• 1 x optical S/PDIF Out

• 2 x audio jacks

• 1 x Q-Flash Plus button

BIOS

• AMI UEFI BIOS, 256 Mbit flash

Unique Features

• EZ-Latch Plus for tool-less PCIe and M.2 installation

• Sensor Panel Link for in-chassis display integration

• GIGABYTE Control Center (GCC)

• Q-Flash and Smart Backup

Operating System Support

• Windows 11 64-bit (SV3 required for full Wi-Fi 7 functionality)
