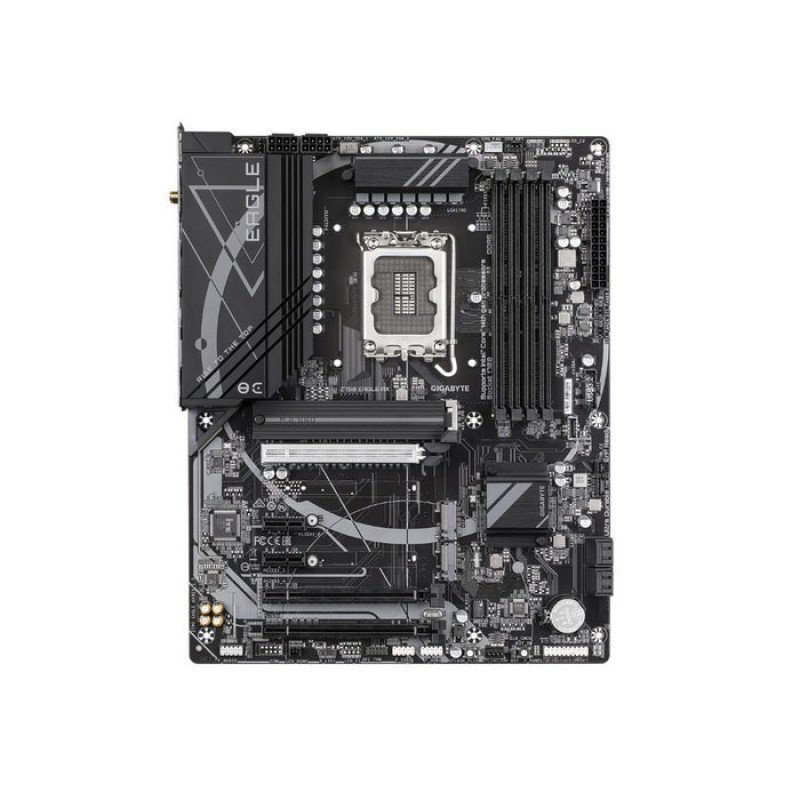

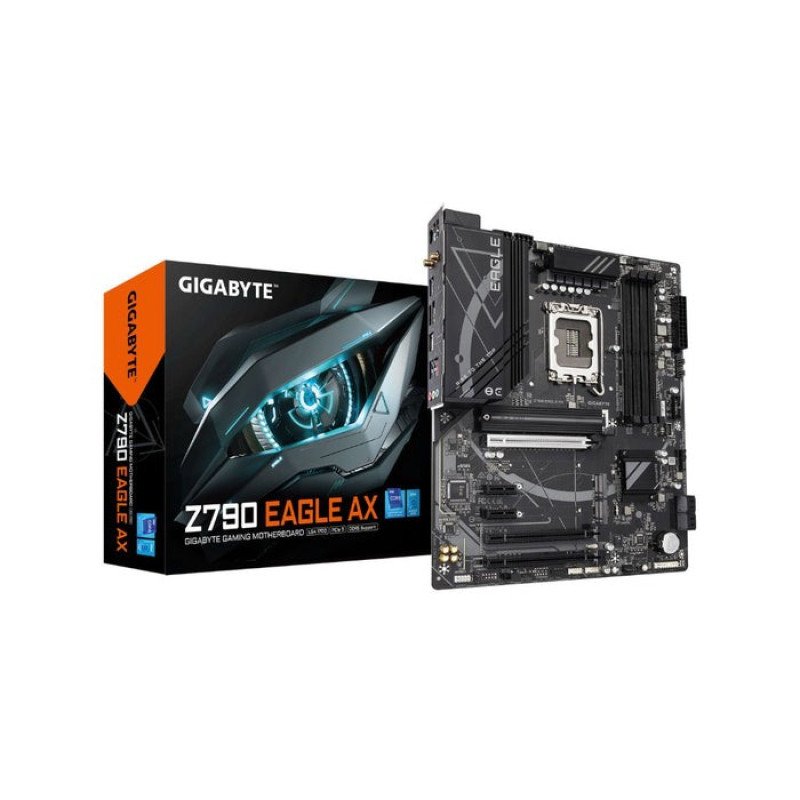

Gigabyte Z790 EAGLE AX, WIFI 6E

Motherboard – Gigabyte Z790 EAGLE AX (WiFi 6E)

Chipset: Intel Z790

Socket: LGA1700 – Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold, and Celeron processors

Form Factor: ATX

Memory

• 4 x DDR5 DIMM slots – up to 256GB

• Dual channel architecture

• Supports speeds up to 7600MT/s (OC)

• Intel XMP 3.0 support

Graphics

• 1 x HDMI 2.1 (4096x2160@60Hz)

• 1 x DisplayPort 1.2 (4096x2304@60Hz)

• Integrated graphics support (depends on CPU)

Audio

• Realtek HD Audio Codec

• 2/4/5.1/7.1-channel support

• Optical S/PDIF out

Networking

• Realtek 2.5GbE LAN

• Intel Wi-Fi 6E AX211 (2.4/5/6GHz)

• Bluetooth 5.3

Expansion Slots

• 1 x PCIe 5.0 x16

• 1 x PCIe 4.0 x4

• 2 x PCIe 3.0 x1

Storage

• 4 x M.2 PCIe 4.0 x4

• 4 x SATA III 6Gb/s

• RAID 0/1/5/10 support

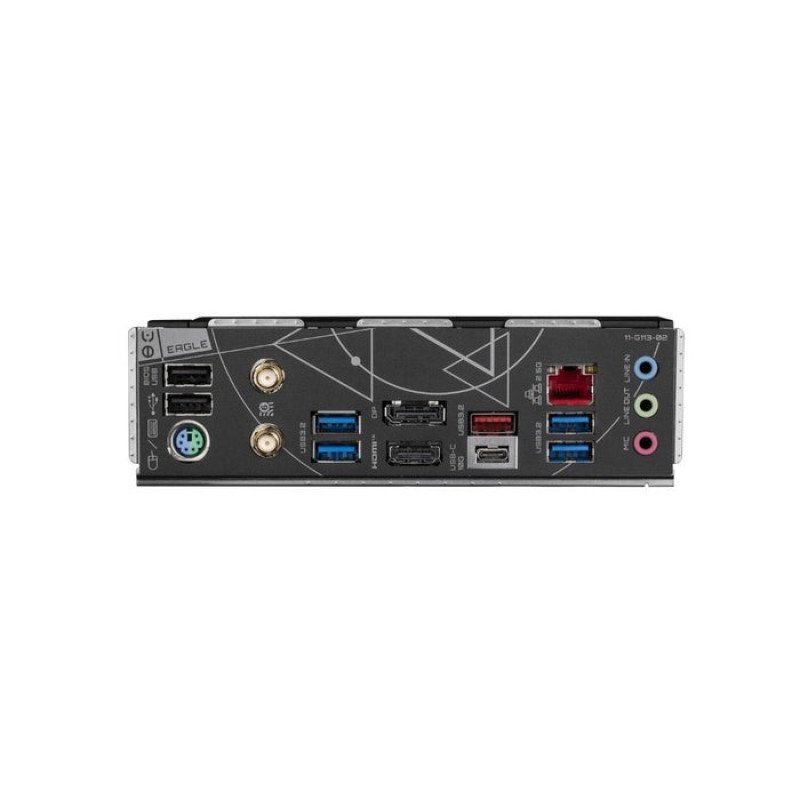

USB Ports

• Rear: USB 3.2 Gen2 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0

• Internal: USB 3.2 Gen1, USB 2.0, USB Type-C header

Cooling & Features

• Smart Fan 6

• Enlarged MOSFET heatsinks

• M.2 Thermal Guard

• EZ-Latch PCIe & M.2

• Q-Flash Plus

• RGB Fusion – Addressable LED headers
