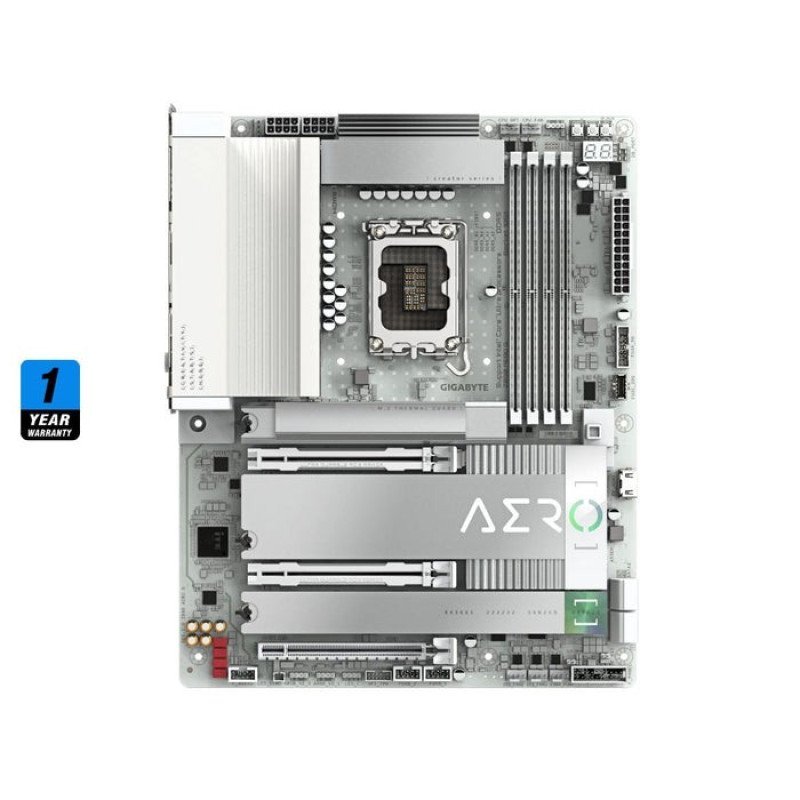

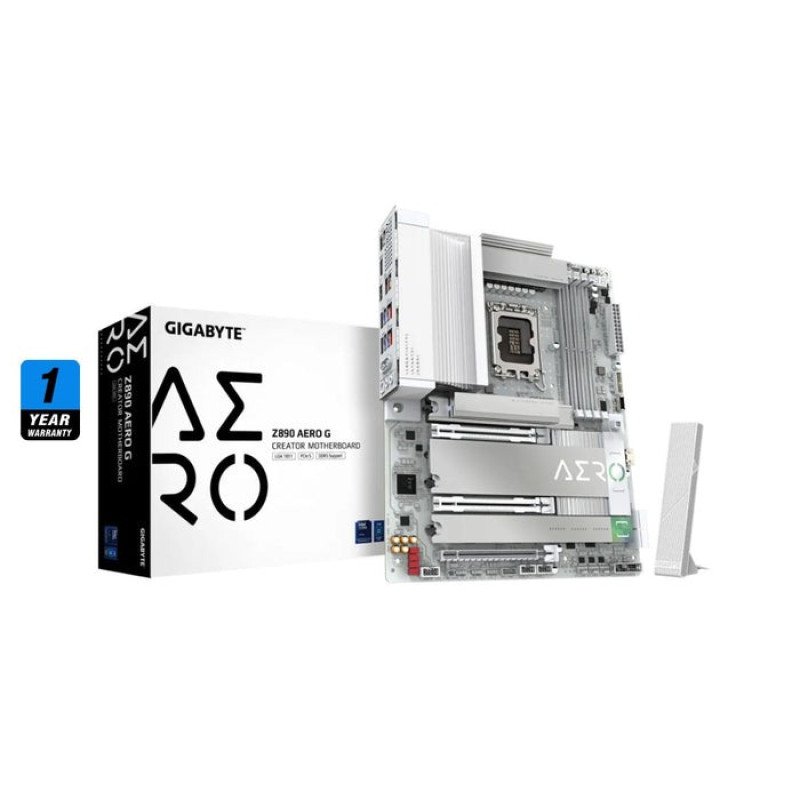

Gigabyte Z890 AERO G, Motherboard

Motherboard Specification

• Processor Support : LGA1851 socket, supports Intel® Core™ Ultra Processors

• Chipset : Intel® Z890 Express

• Memory Support :

4 x DDR5 DIMM slots, up to 256GB

Supports up to 9200MT/s (OC)

Supports ECC (non-ECC mode), XMP, and CUDIMM modules

Dual channel memory architecture

• Graphics Ports :

1 x Thunderbolt™ 4 (USB4® Type-C®) – up to 5120x2880@60Hz

1 x HDMI 2.1 – up to 4096x2160@60Hz

1 x Front HDMI 1.4 – up to 1920x1080@30Hz

Supports up to triple-display

• Expansion Slots :

1 x PCIe 5.0 x16

1 x PCIe 5.0 x8 (shares bandwidth with x16)

1 x PCIe 4.0 x4

• Storage :

2 x M.2 (CPU) – 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x4

3 x M.2 (Chipset) – PCIe 4.0 x4/x2 & SATA

4 x SATA 6Gb/s

RAID 0/1/5/10 for NVMe and SATA

• Ethernet : 2 x Intel® 2.5GbE LAN

• Wireless & Bluetooth : Intel® Wi-Fi 7 BE202 + Bluetooth® 5.4

• USB :

Back:

1 x Thunderbolt™ 4 (USB4® Type-C®)

2 x USB 3.2 Gen2 Type-A (red)

4 x USB 3.2 Gen1

2 x USB 2.0

Internal:

1 x USB-C (Gen 2x2)

1 x USB 3.2 Gen1 header

2 x USB 2.0 headers (4 ports)

• Audio : Realtek® ALC1220, 7.1-channel HD Audio, DSD, S/PDIF Out

• Internal I/O Connectors :

2 x 8-pin + 1 x 24-pin power

5 x M.2, 4 x SATA

USB-C Gen 2x2, USB 3.2 Gen1, USB 2.0

ARGB & RGB headers, TPM, HDMI, fan/pump headers, reset, Q-Flash, power buttons

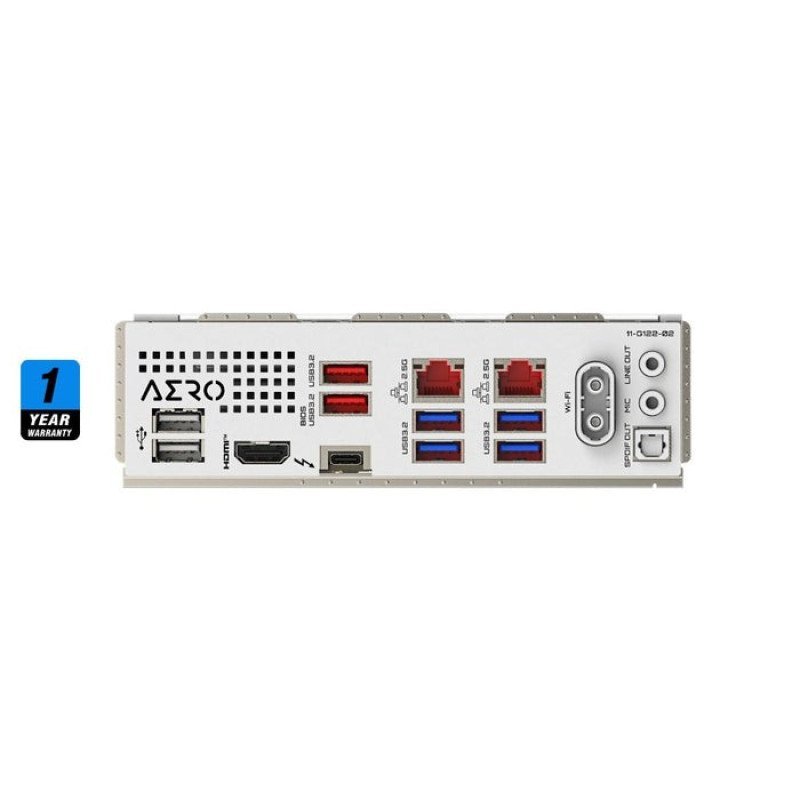

• Back Panel I/O Ports :

1 x HDMI

1 x Thunderbolt™ 4 (USB-C)

2 x USB 3.2 Gen2 Type-A (red)

4 x USB 3.2 Gen1

2 x USB 2.0

2 x RJ-45

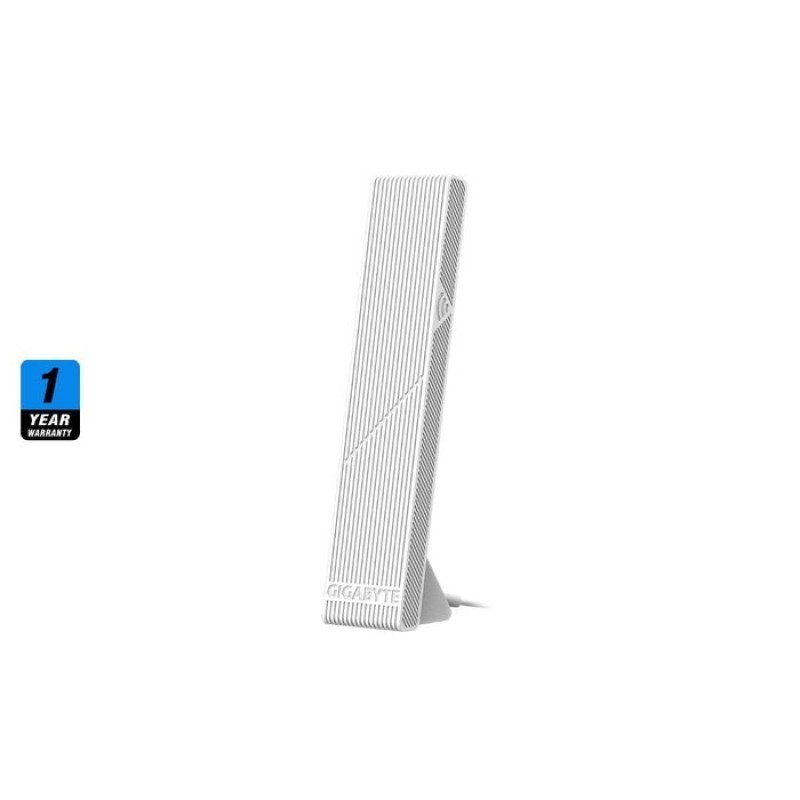

2 x SMA Wi-Fi Antennas

2 x Audio jacks + 1 x Optical S/PDIF

• Form Factor : ATX, 30.5 x 24.4 cm
