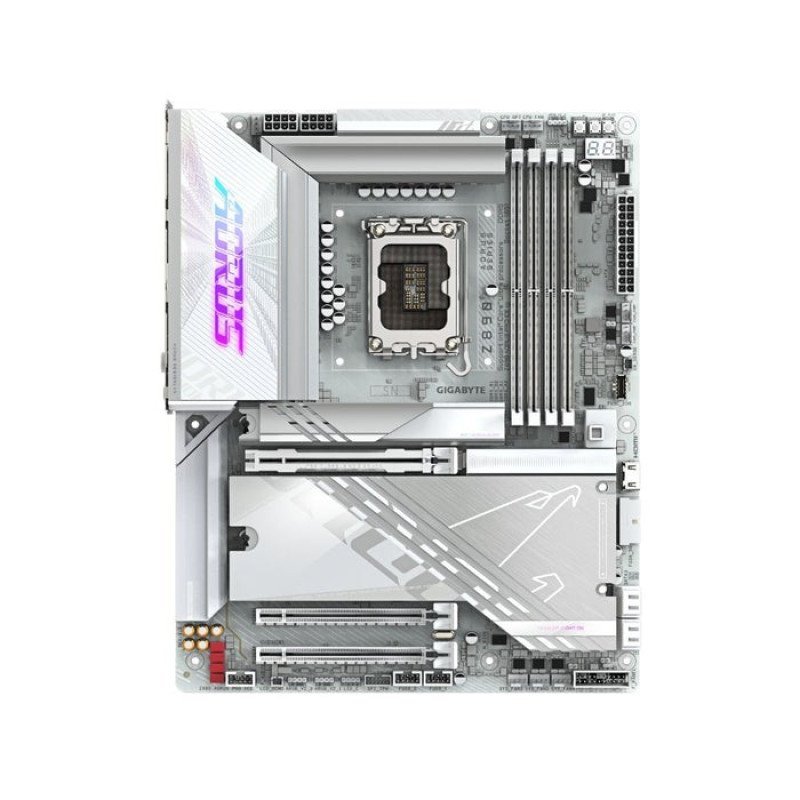

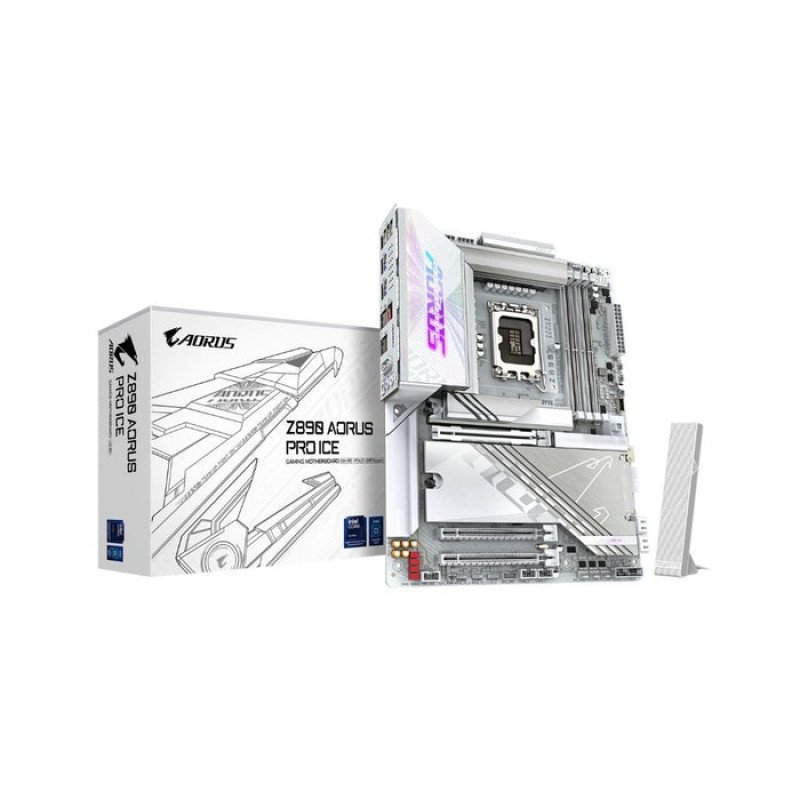

Gigabyte Z890 AORUS PRO ICE

Motherboard Specification

CPU Socket: LGA1851, Intel® Core™ Ultra Processors (L3 cache varies with CPU)

Chipset: Intel® Z890 Express Chipset

Memory:

Supports DDR5 9500(O.C) to 5600MT/s

4 x DDR5 DIMM sockets (up to 256 GB)

Dual channel architecture

Supports ECC and non-ECC Un-buffered DIMM

XMP and CUDIMM support

Graphics:

Integrated Intel® HD Graphics

2 x Thunderbolt™ 4 (USB4® Type-C®) supporting DisplayPort

1 x HDMI port (1920x1080@30 Hz, HDMI 1.4)

Support for up to triple display simultaneously

Audio:

Realtek® ALC1220 CODEC, High Definition Audio

2/4/5.1/7.1-channel configuration

Supports S/PDIF Out

Networking:

Realtek® 5GbE LAN (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 7 BE200 (802.11a/b/g/n/ac/ax/be)

Bluetooth 5.4

Expansion Slots:

CPU: 1 x PCIe 5.0 x16 (for GPU or NVMe SSD)

Chipset: 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x1

Storage Interface:

CPU: 1 x M.2 PCIe 5.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2

Chipset: 3 x M.2 PCIe 4.0 x4/x2, 1 x M.2 PCIe 4.0 x4/x2 (SATA support), 4 x SATA 6Gb/s

RAID: 0, 1, 5, 10 for NVMe and SATA

USB Ports:

CPU: 2 x Thunderbolt™ 4 (USB Type-C®)

Chipset: 1 x USB 3.2 Gen 2x2 Type-C®, 2 x USB 3.2 Gen 2 Type-A, 6 x USB 3.2 Gen 1, 8 x USB 2.0/1.1

Internal I/O Connectors:

24-pin ATX, 2 x 8-pin ATX 12V

1 x CPU fan header, 1 x water cooling pump header

4 x system fan headers, 2 x system fan/water pump headers

3 x addressable RGB Gen2 LED headers, 1 x RGB LED header

5 x M.2 connectors, 4 x SATA 6Gb/s connectors

1 x HDMI port, 1 x USB Type-C® header

1 x Trusted Platform Module header

2 x temperature sensor headers

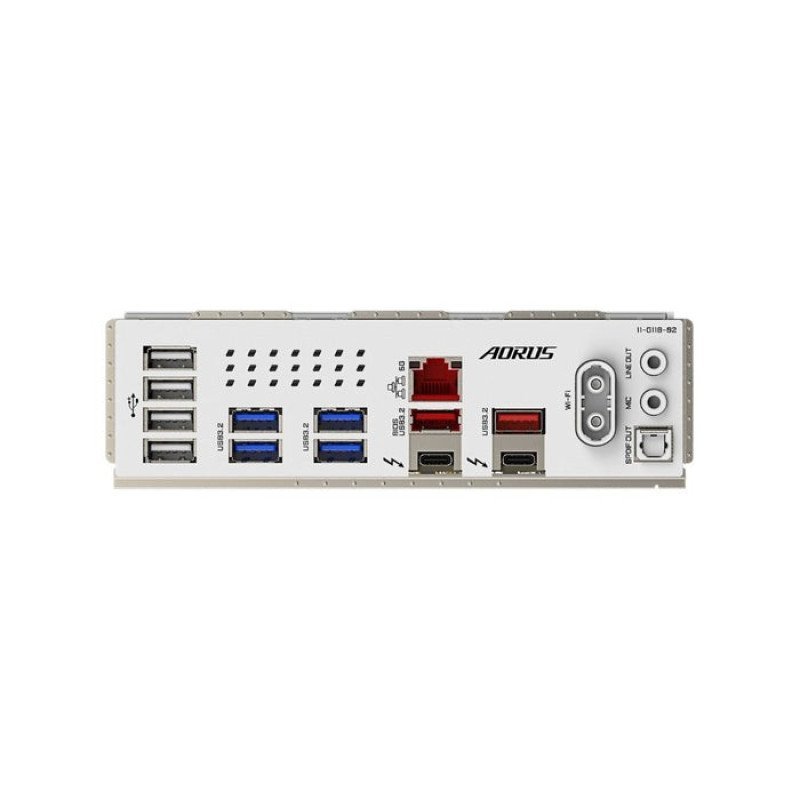

Back Panel I/O Ports:

4 x USB 2.0/1.1, 4 x USB 3.2 Gen 1, 2 x Thunderbolt™ 4 (USB Type-C®), 2 x USB 3.2 Gen 2 Type-A

1 x RJ-45, 2 x antenna connectors

1 x optical S/PDIF Out, 2 x audio jacks

BIOS:

256 Mbit flash, AMI UEFI BIOS

Supports Q-Flash and Q-Flash Plus

Unique Features:

GIGABYTE Control Center (GCC)

Norton® Internet Security (OEM)

LAN bandwidth management software

Voltage, temperature, fan speed, and noise detection

Operating System Support: Windows 11 64-bit

Form Factor: ATX (30.5 cm x 24.4 cm)
