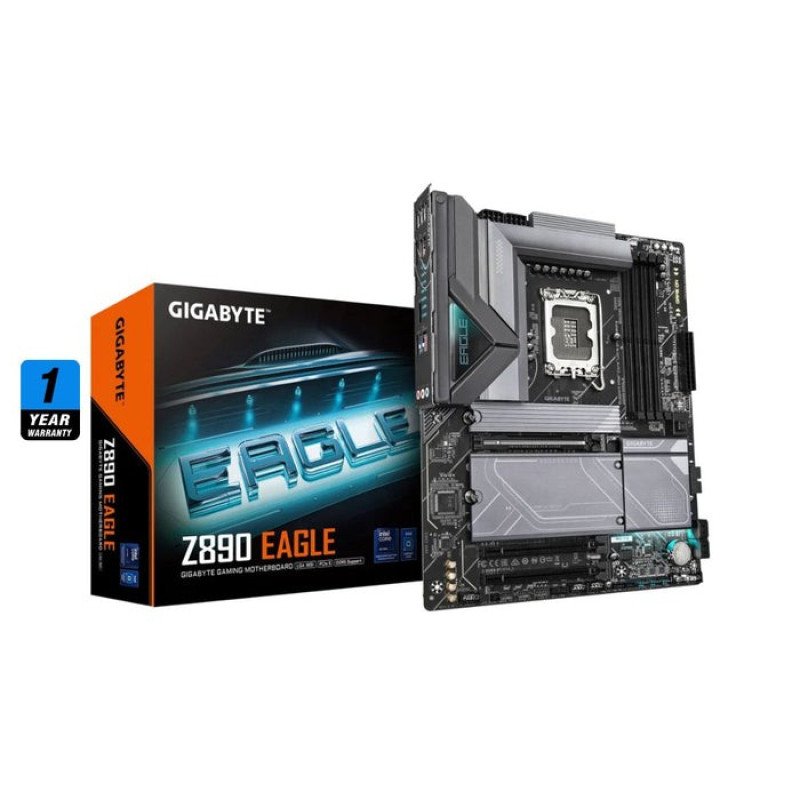

Gigabyte Z890 EAGLE, Motherboard

Motherboard Specification

• Processor Support : LGA1851 socket, supports Intel® Core™ Ultra Processors

• Chipset : Intel® Z890 Express

• Memory Support :

4 x DDR5 DIMM slots, up to 256GB

Supports up to 8800MT/s (OC)

ECC (non-ECC mode), XMP supported

Dual channel architecture

• Graphics Ports :

1 x USB4® Type-C® – up to 3840x2160@144Hz

1 x DisplayPort 2.1 – up to 3840x2160@144Hz

(Graphics support depends on CPU)

• Expansion Slots :

1 x PCIe 5.0 x16

2 x PCIe 4.0 x4 (from chipset)

• Storage :

2 x M.2 (CPU) – PCIe 5.0 x4 & PCIe 4.0 x4

2 x M.2 (Chipset) – PCIe 4.0 x4 & PCIe 4.0 x4 + SATA

4 x SATA 6Gb/s

RAID 0/1/5/10 for NVMe and SATA

• Ethernet : Realtek® 2.5GbE LAN

• Wireless & Bluetooth : None listed

• USB :

Back Panel

1 x USB4® Type-C®

2 x USB 3.2 Gen2 Type-A

3 x USB 3.2 Gen1

4 x USB 2.0

Internal

1 x USB-C Gen2

1 x USB 3.2 Gen1 header

2 x USB 2.0 headers (4 ports total)

• Audio : Realtek® HD Audio, 7.1-channel, supports S/PDIF Out

• Internal I/O Connectors :

2 x 8-pin + 1 x 24-pin power

4 x M.2, 4 x SATA

USB-C, USB 3.2 Gen1, USB 2.0

ARGB & RGB headers, TPM, power, reset, Q-Flash Plus, Thunderbolt add-in

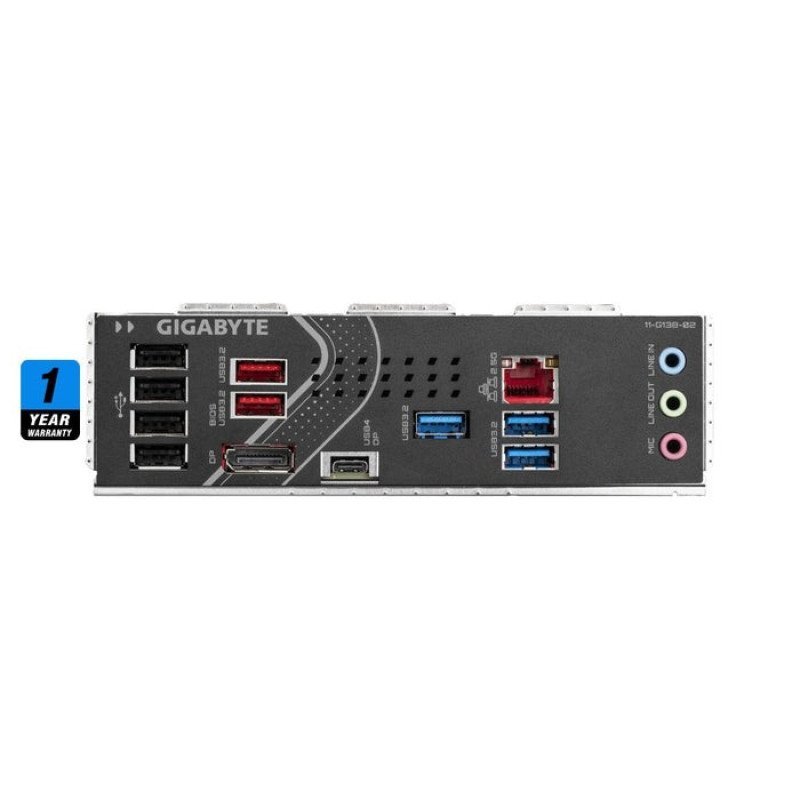

• Back Panel I/O Ports :

1 x USB4® Type-C®

2 x USB 3.2 Gen2 Type-A

3 x USB 3.2 Gen1

4 x USB 2.0

1 x DisplayPort

1 x RJ-45

2 x Antenna connectors

3 x Audio jacks

• Form Factor : ATX, 30.5cm x 24.4cm
