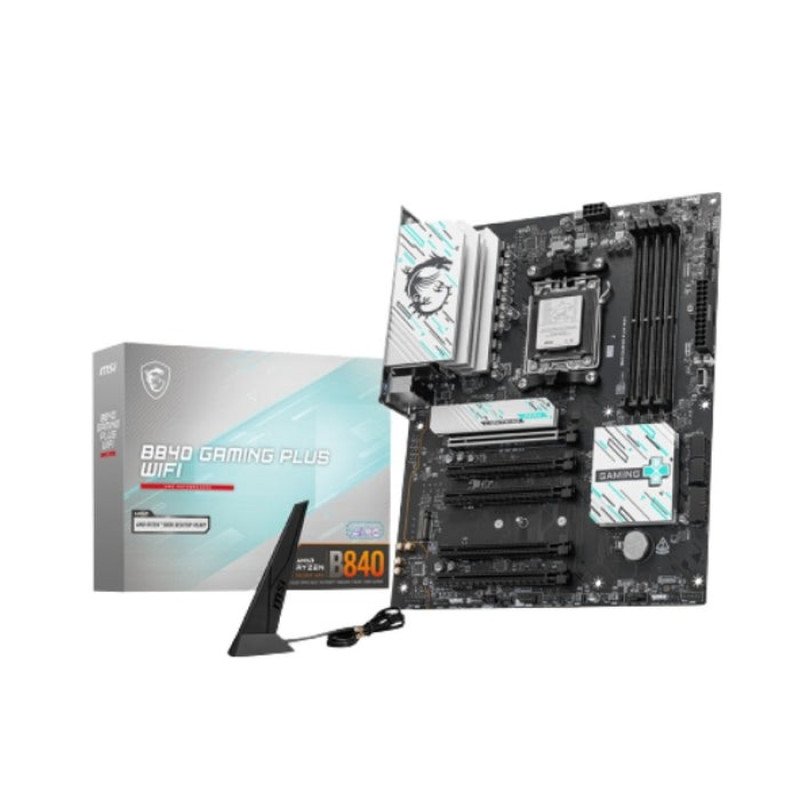

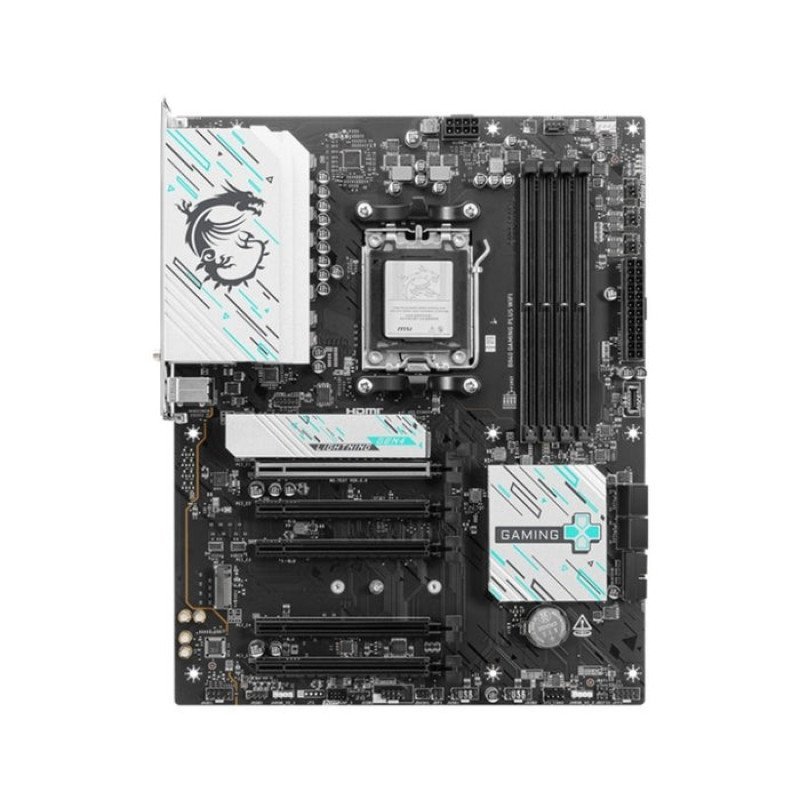

MSI B840 GAMING PLUS WIFI, Motherboard

 Model: MSI B840 GAMING PLUS WIFI, Motherboard

• Form Factor: ATX

 • Chipset: AMD B840

 • Socket: AM5

 • CPU Support: AMD Ryzen 7000 / 8000 / 9000 Series

 • Memory:

  – 4 × DDR5 DIMM slots

  – Up to 256 GB capacity

  – Speeds up to 8000 MHz (OC)

 • Expansion Slots:

  – 1 × PCIe 5.0 x16

  – 2 × PCIe 4.0 x1

  – 1 × PCIe 4.0 x4

 • Storage:

  – 2 × M.2 slots (PCIe 5.0/4.0 NVMe SSD support)

  – 4 × SATA III 6 Gb/s ports

 • USB Ports:

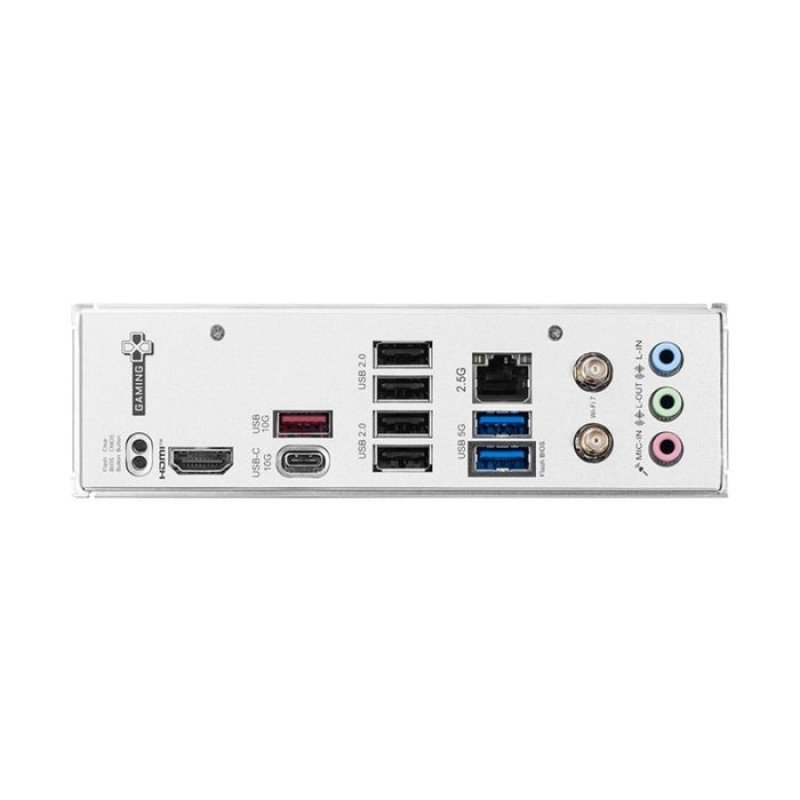

  – Rear I/O: 1 × USB 3.2 Gen2x2 Type‑C, 2 × USB 3.2 Gen2 Type‑A, 4 × USB 2.0

  – Internal headers for front panel USB

 • Networking:

  – Realtek 2.5GbE LAN

  – Integrated WiFi 7 + Bluetooth 5.3

 • Audio: Realtek ALC897, 8‑channel HD Audio

 • Cooling / Fan Headers: 6 (PWM/DC)

 • BIOS: MSI Click BIOS 5 with EZ Debug LED

 • Features:

  – Core Boost Technology for stable CPU power delivery

  – DDR5 Boost for optimized memory performance

  – Extended heatsinks for VRM cooling

  – Steel Armor PCIe slot reinforcement

  – Dual BIOS modes (Performance/Silent)
