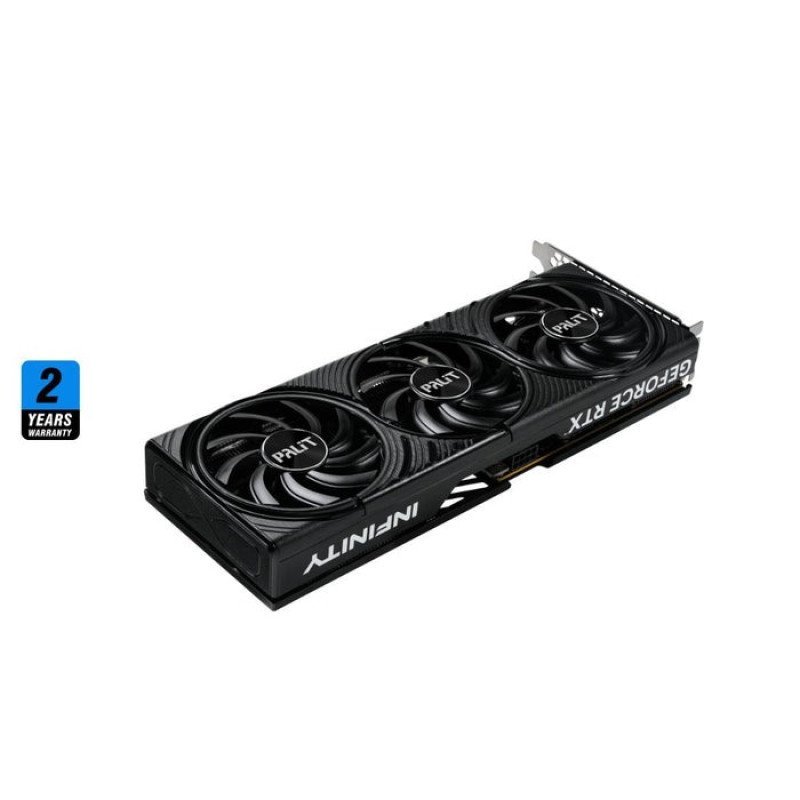

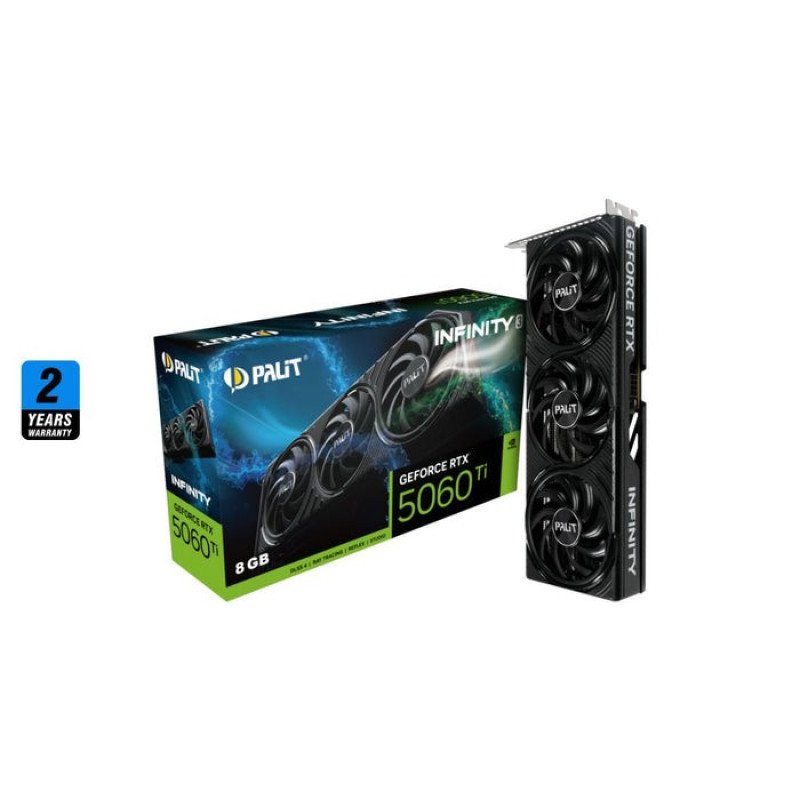

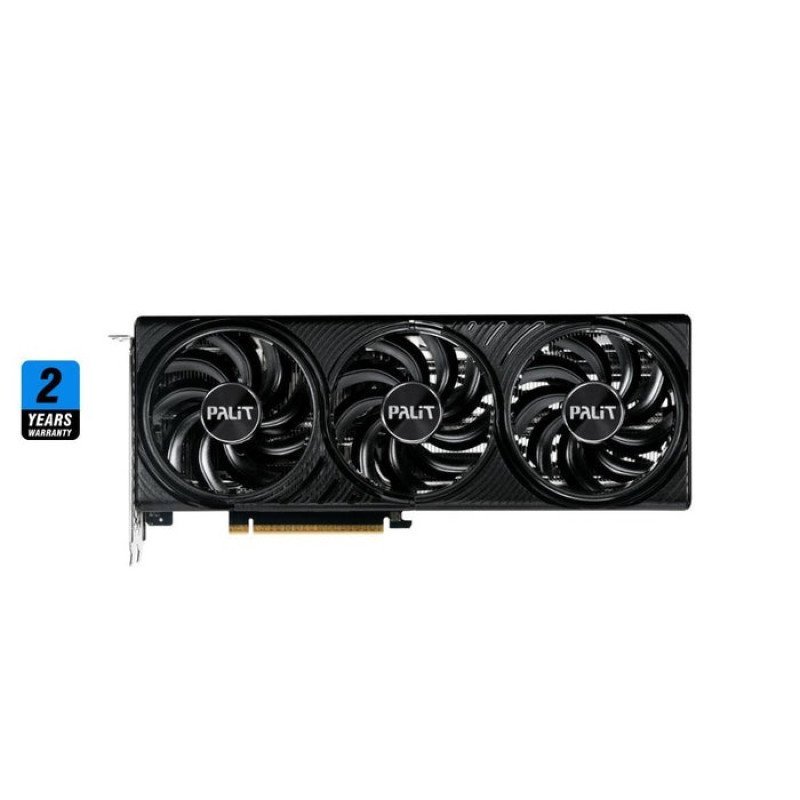

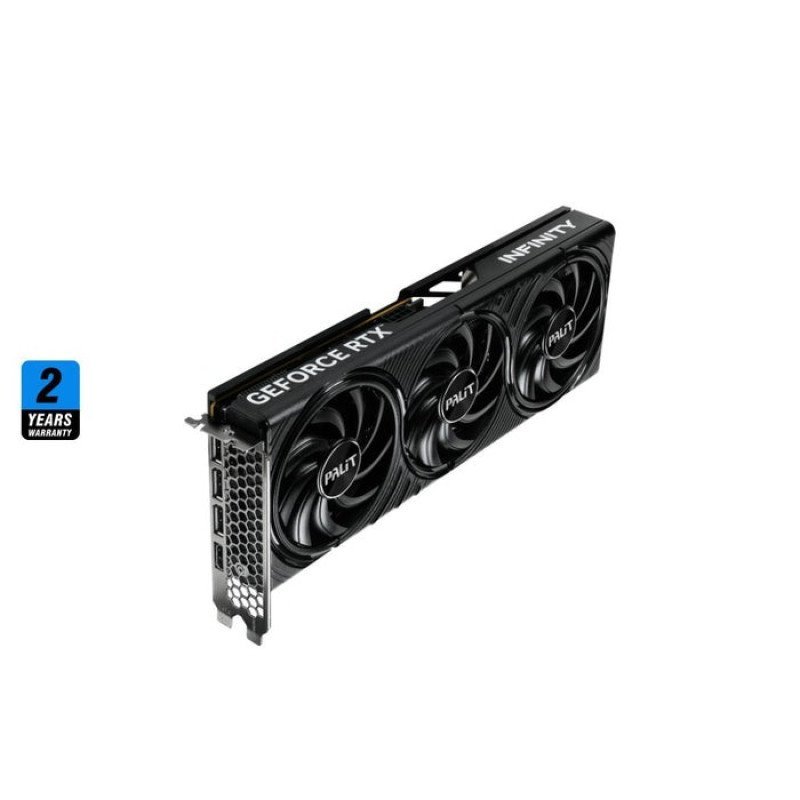

Palit GeForce RTX 5060 Ti Infinity 3X - 8GB

Graphics Card Specifications

Core Specifications

VRAM: 8GB GDDR7

Memory Interface: 128-bit

Memory Speed: 28 Gbps

Memory Bandwidth: 448 GB/s

CUDA Cores: 4,608

Clock Speeds:

Base Clock: 2,407 MHz

Boost Clock: 2,572 MHz

Power Requirements

TDP: 180W

Recommended PSU: 600W

Power Connector: 8-pin (1x)

Interface & Display

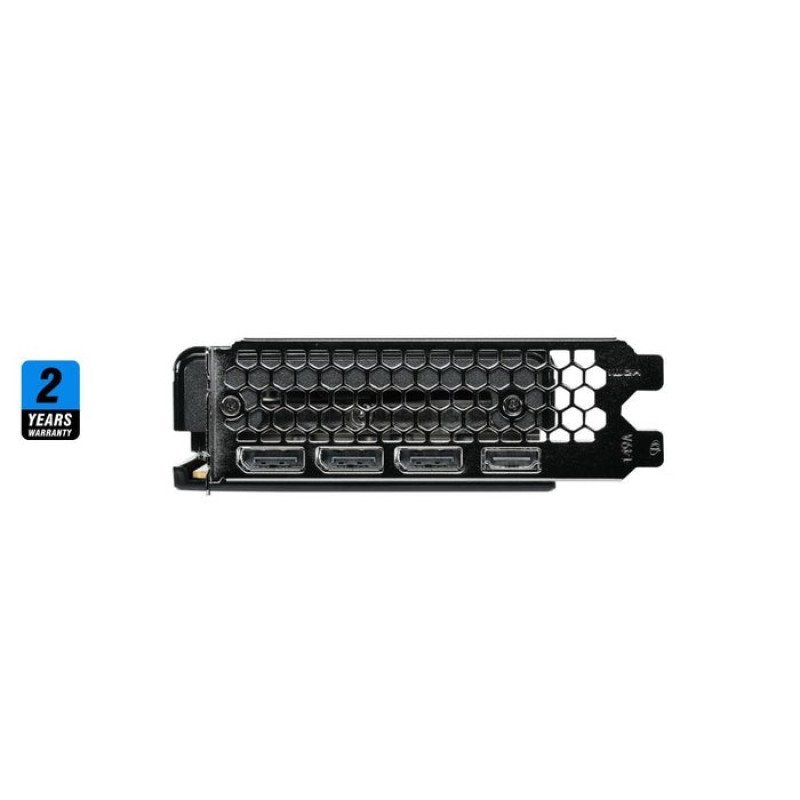

Video Outputs:

3× DisplayPort 2.1b

1× HDMI 2.1b

Max Resolution Support:

4K @ 480Hz

8K @ 120Hz (with DSC)

Bus Interface: PCIe 5.0 ×16

Physical Dimensions

Form Factor: 2-slot

Dimensions (L×W×H): 291.9 × 116.6 × 41.3 mm
