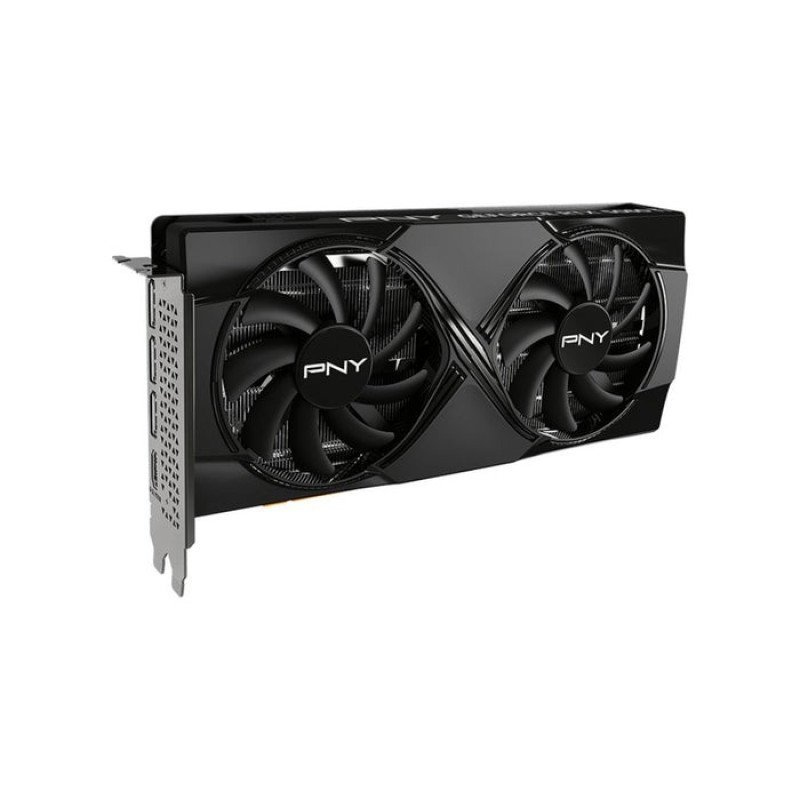

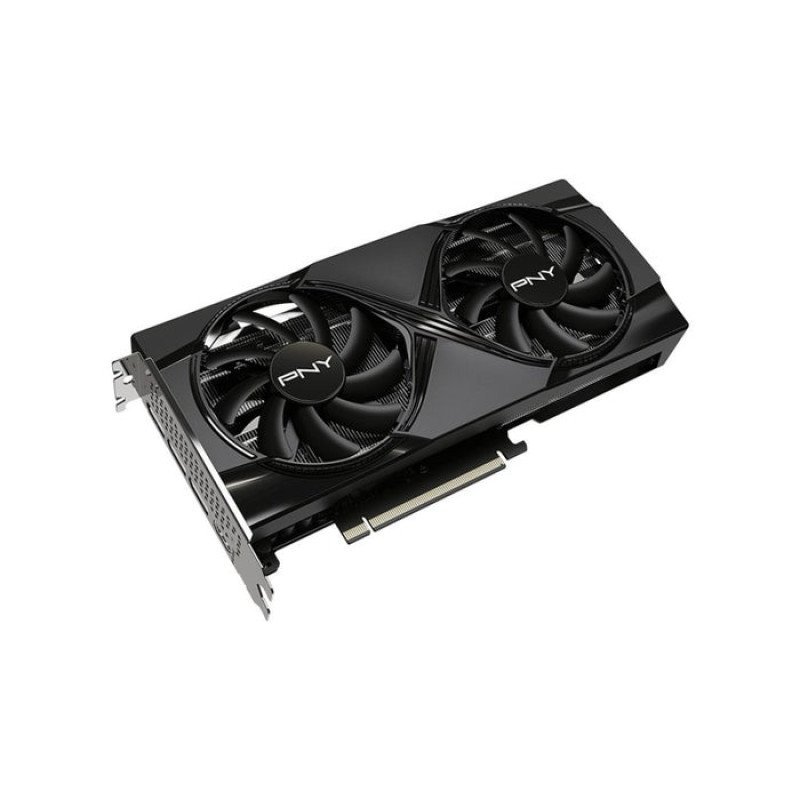

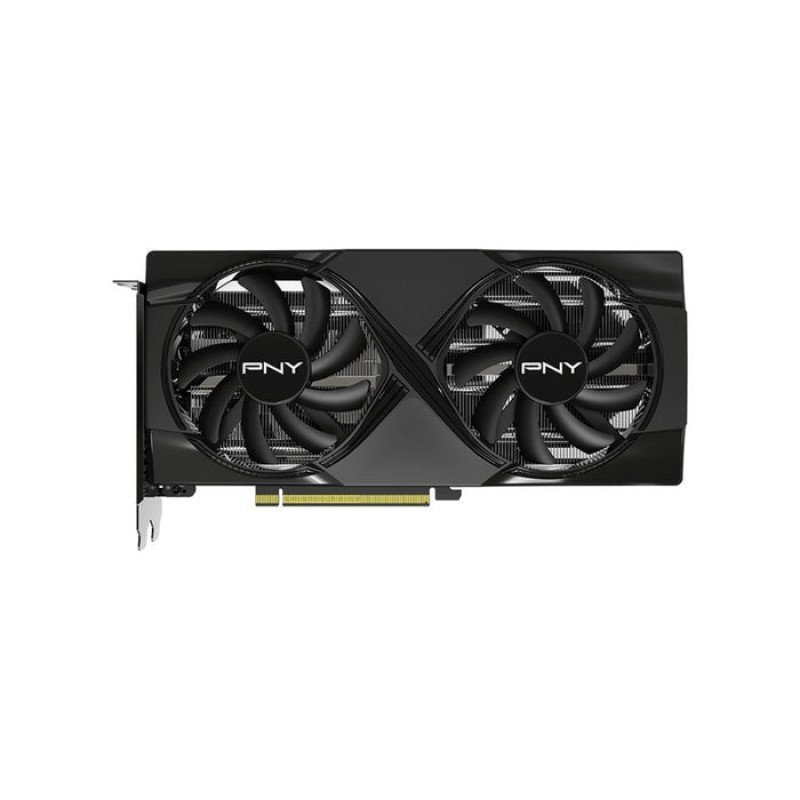

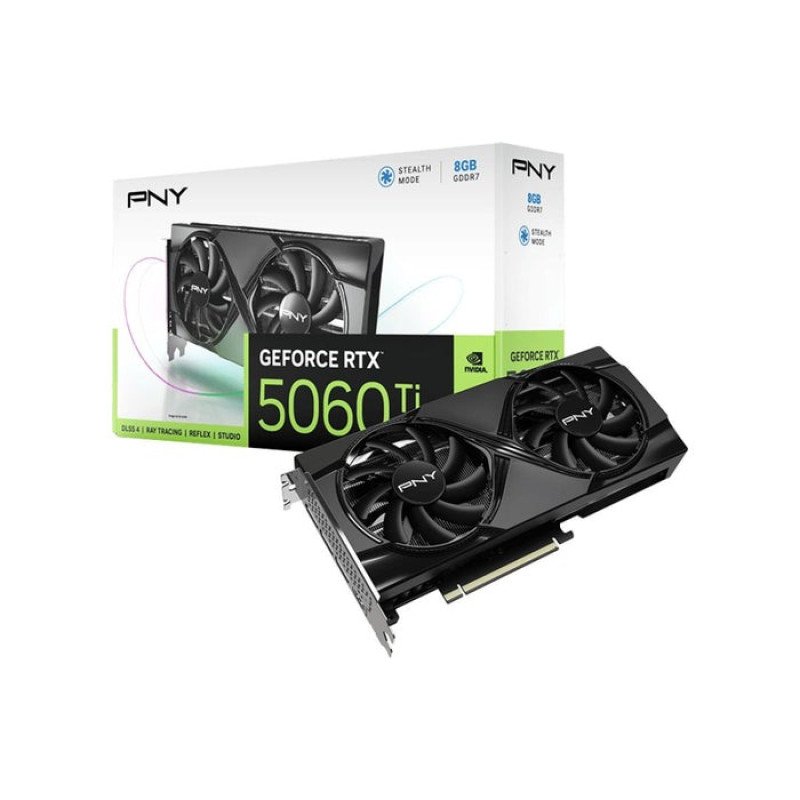

PNY GeForce RTX™ 5060 Ti 8GB Dual Fan

• GPU Specification

 • Model: PNY GeForce RTX™ 5060 Ti 8GB Dual Fan

 • Architecture: NVIDIA Blackwell GB206-300-A1

 • CUDA Cores: 4,608

 • RT Cores: 4th Gen (36 units)

 • Tensor Cores: 5th Gen (144 units)

 • Process Node: TSMC 4N (5nm)

 • Transistors: 21.9 billion

 • Die Size: 181 mm²

• Memory

 • Capacity: 8GB GDDR7

 • Bus Width: 128-bit

 • Effective Clock: 28 Gbps

 • Bandwidth: 448 GB/s

• Clock Speeds

 • Base Clock: 2,407 MHz

 • Boost Clock: 2,572 MHz

 • Memory Clock: 1,750 MHz

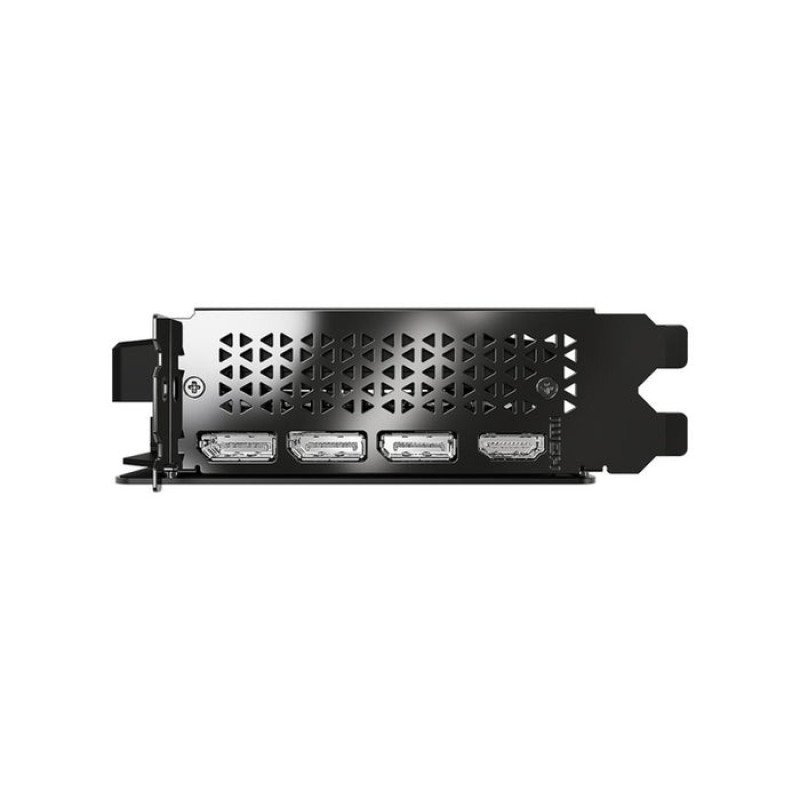

• Display Outputs

 • 3 × DisplayPort 2.1b

 • 1 × HDMI 2.1b

  – Supports up to 8K HDR @ 165Hz (DP) / 120Hz (HDMI)

• Bus Interface

 **• PCIe 5.0 x8

• Cooling & Design

 • Dual-fan custom cooler

 • Dual-slot design

 • Dimensions: 241 × 111 × 40 mm

 • RGB: EPIC-X ARGB (select models)

• Power Requirements

 • TDP: 180W

 • Power Connector: 1 × 8-pin

 • Recommended PSU: 450W

• Features

 • DLSS 4 with Multi Frame Generation

 • DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6

 • NVIDIA Studio, Reflex, Broadcast, G-SYNC

 • NVIDIA App support for driver updates

• Compatibility

 • OS: Windows 10/11 64-bit, Linux 64-bit

 • Motherboard: PCIe x16 slot required
