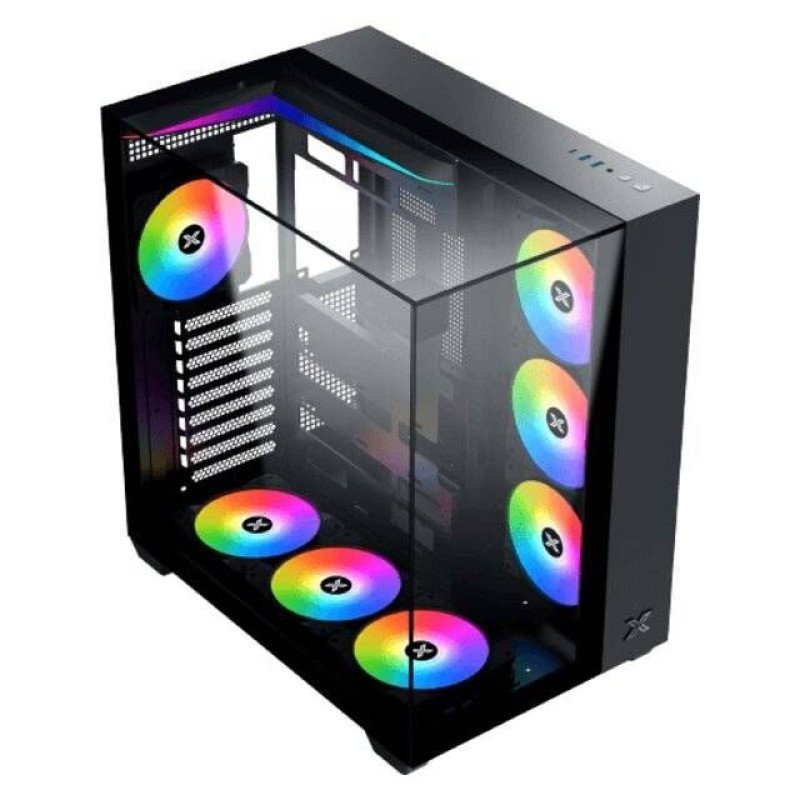

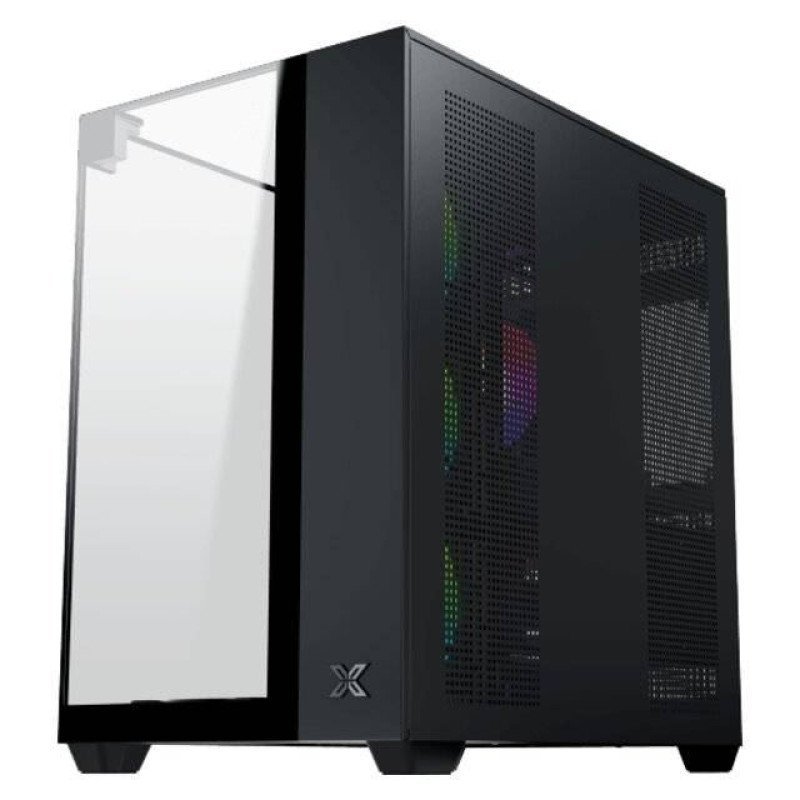

Xigmatek Aqua V [EN45806] Case

Product Name

• AQUA V

Dimensions

• 427x285x455mm (LxWxH)

Fan Support

• MB: 120mm x3 or 140mm x2
  Bottom: 120mm x3 (Whithout 3.5” HDD)
  Rear: 120mm x1

Drive Bays

• Bottom Panel: 3.5” x1 or 2.5”x2
  HDD Cage: 3.5” x1 & 2.5” x2

CPU Cooler Clearance

• 165mm

GPU Length Limitation

• 410mm

PSU Length Limitation

• 220mm

Material

• Steel

Expansion Slots

• 9 Standard Slots

Motherboard Support

• ATX (Support Back Plug)
• Micro ATX (Support Back Plug)
• Mini ITX

Power Supply

• Standard PS2
• ATX PSU

Radiator Support

• MB: 240/280/360
• Bottom: 240/360
• Rear: 120

I/O Panel

• USB 3.0 x 2
• USB-C x 1
• HD Audio
