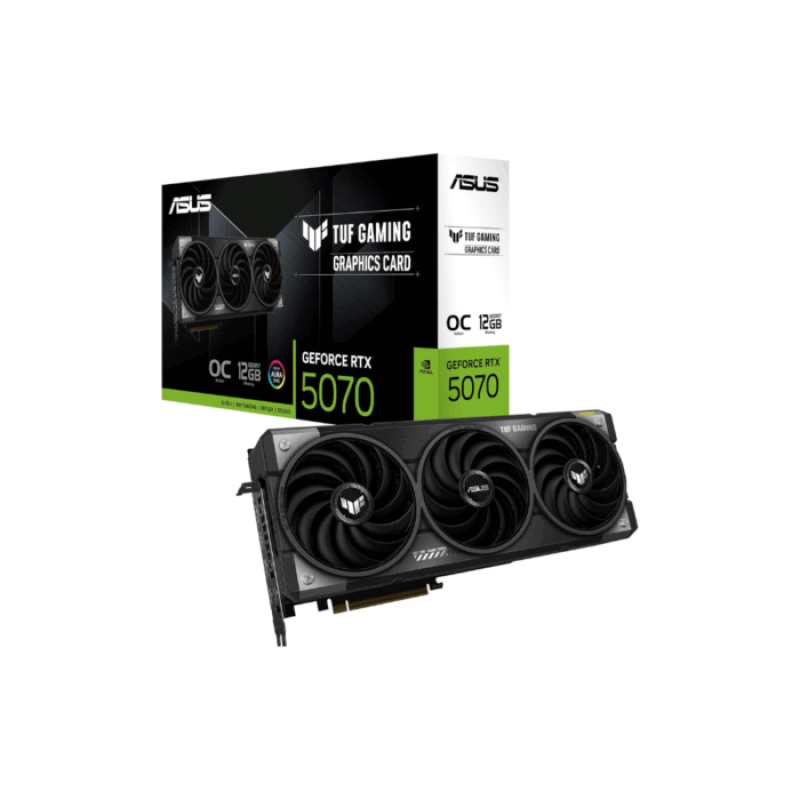

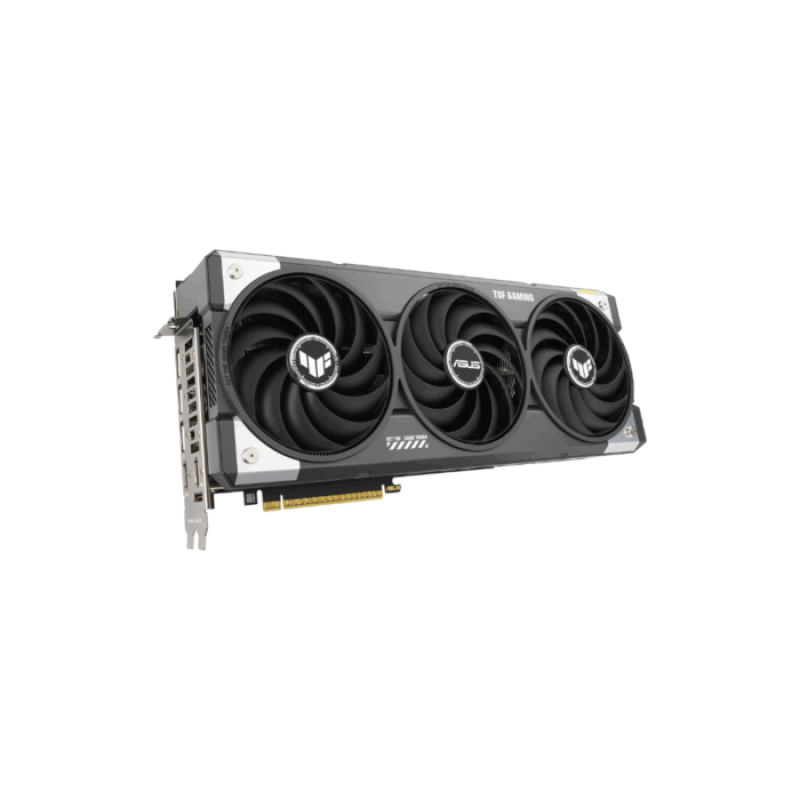

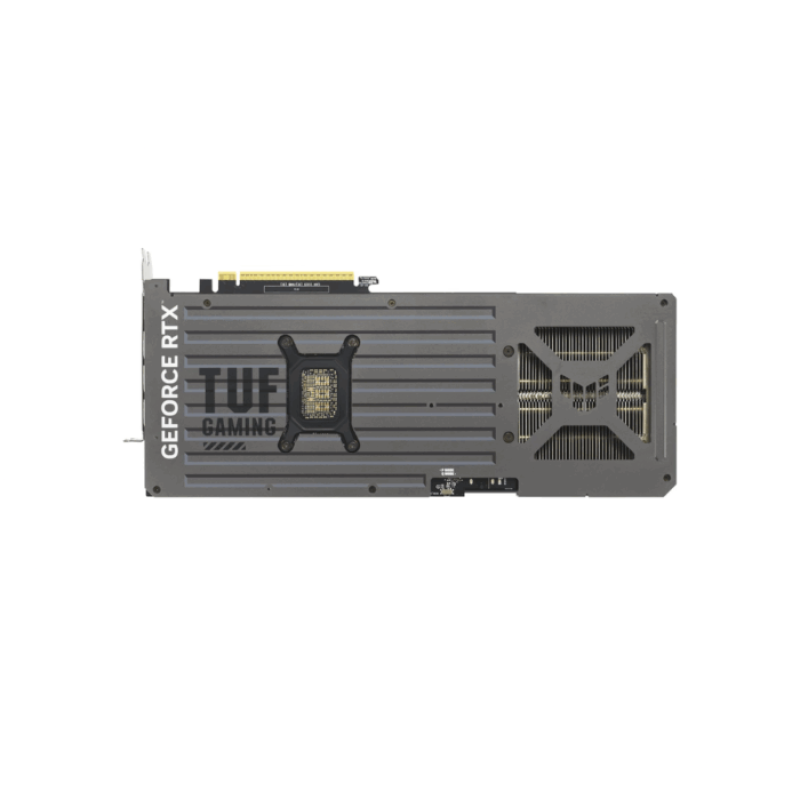

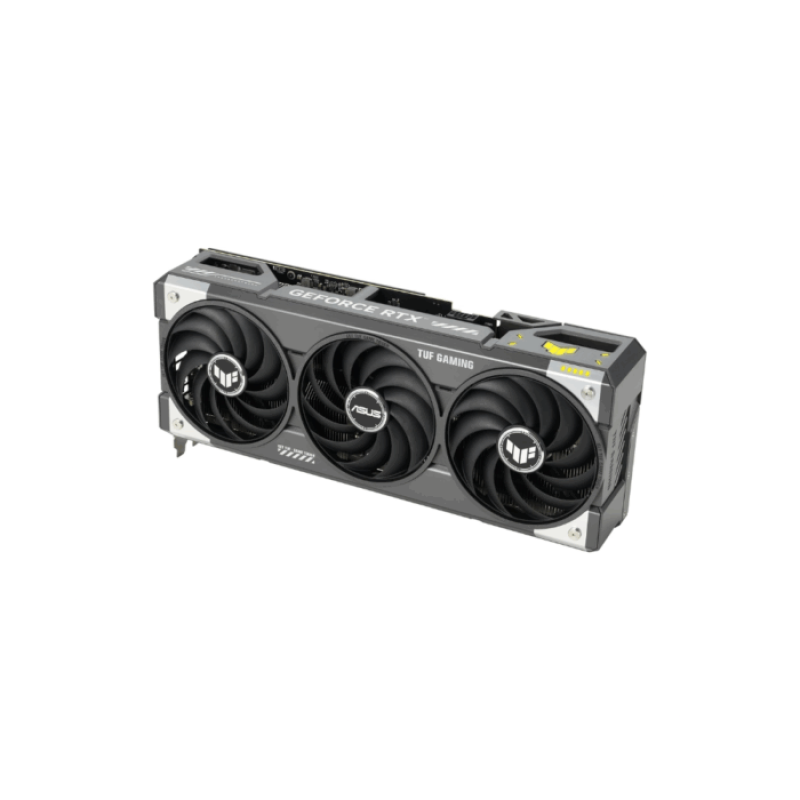

ASUS GeForce RTX™ 5070 TUF GAMING 12GB OC Edition

Model

TUF-RTX5070-O12G-GAMING

Graphic Engine

NVIDIA® GeForce RTX™ 5070

AI Performance

1026 TOPs

Bus Standard

PCI Express 5.0

OpenGL

OpenGL®4.6

Video Memory

12GB GDDR7

Engine Clock

OC mode: 2640MHz
Default mode: 2610MHz (Boost Clock)

CUDA Core

6144

Memory Speed

28 Gbps

Memory Interface

192-bit

Resolution

Digital Max Resolution 7680 x 4320

Interface

Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1b)
HDCP Support Yes (2.3)

Maximum Display Support

4

NVlink/ Crossfire Support

No

Accessories

1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adpater Cable (1 to 2)

Software

ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

Dimensions

329 x 140 x 62.5 mm
12.95 x 5.51 x 2.46 inch

Recommended PSU

750W

Power Connectors

1 x 16-pin

Slot

3.125 Slot

AURA SYNC

ARGB
