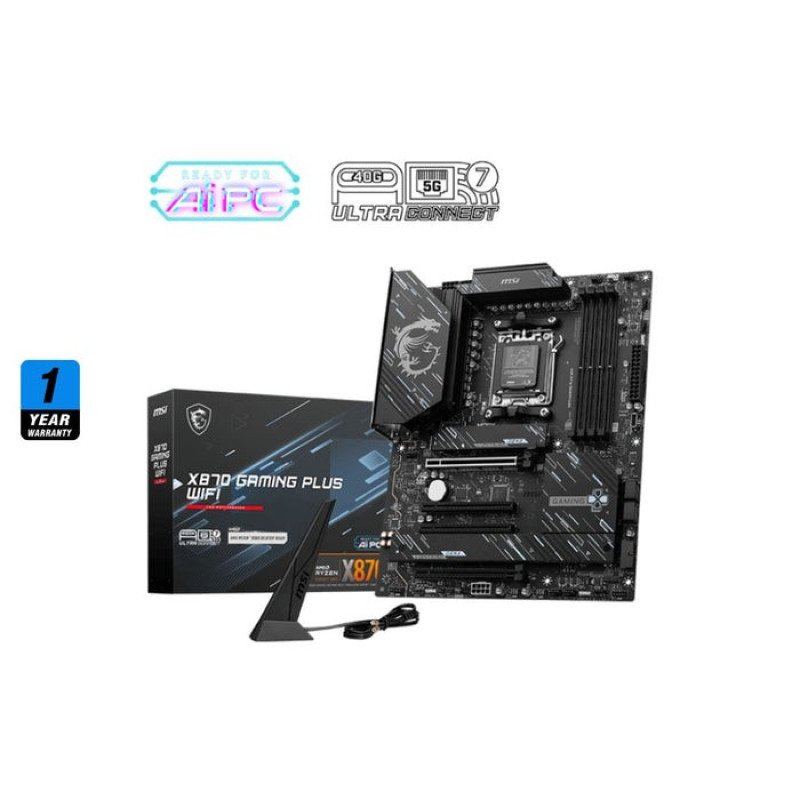

MSI X870 GAMING PLUS WIFI , Motherboard

Motherboard Specification

Processor Support: AMD Ryzen 9000, 8000, 7000 Series

Chipset: AMD X870

Memory Support: 4x DDR5, up to 256GB, up to 8200+ MT/s, Dual Channel, AMD EXPO

Graphics Ports: HDMI 2.1, USB4 Type-C (DP 1.4)

Expansion Slots: 4x PCIe x16 (Gen5/4/3)

Storage: 3x M.2 (PCIe 5.0/4.0), 4x SATA 6Gb/s, RAID 0/1/5 (NVMe only)

Ethernet: Realtek 8126VB 5G LAN

Wireless & Bluetooth: Wi-Fi 7, Bluetooth 5.4

USB: 1x USB4 40Gbps Type-C, 1x USB-C 20Gbps, 2x USB-A 10Gbps, 4x USB-A 5Gbps, 8x USB 2.0

Audio: Realtek ALC897, 7.1-Channel HD Audio

Internal I/O Connectors: ATX_PWR, 2x CPU_PWR, PCIe_PWR, 6x Fan, 3x ARGB, RGB, TPM, USB headers

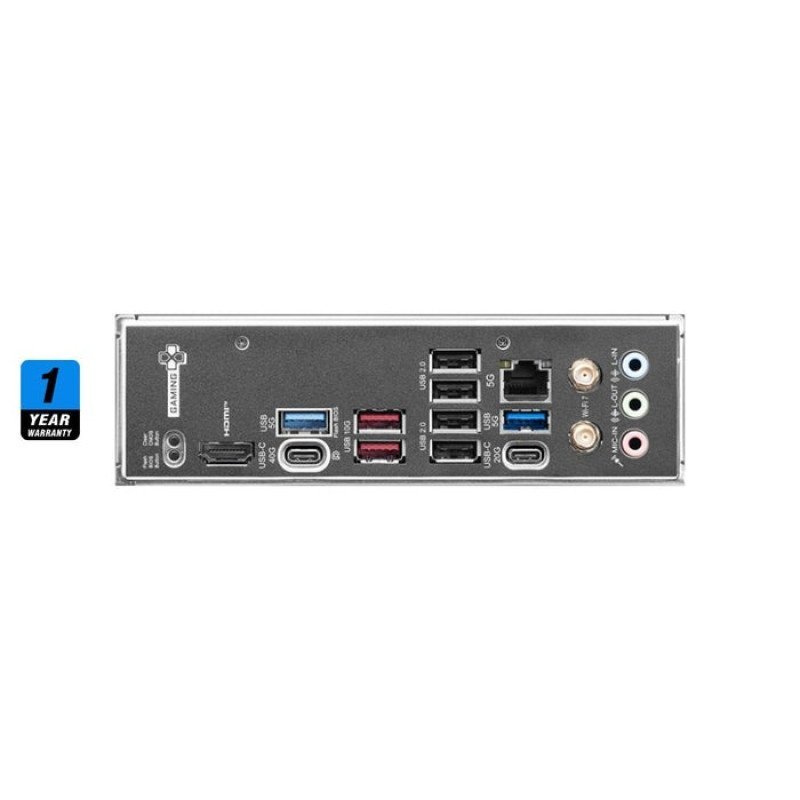

Back Panel I/O Ports: HDMI, USB-C 40Gbps, USB-C 20Gbps, USB-A (10/5/2.0), 5G LAN, Wi-Fi, Audio, BIOS Button

Form Factor: ATX (243.84 x 304.8 mm)
